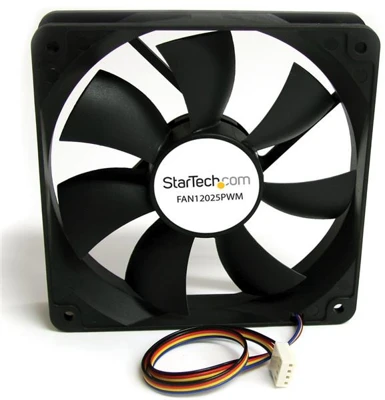

The FAN12025PWM 120mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures to help ensure optimal performance from internal components.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hardware | |
|---|---|
| Fan Bearing Type | Ever Lubricate Bearing |
| Number of Conductors | 4 |
| Performance | |
| Air Flow Rate | 33.20 ~ 78.41 CFM |
| Fan RPM | 800 ~ 2200 RPM |
| MTBF | 40,000 Hours |
| Noise Level | < 17.2 ~ 39 dBA |
| Connector(s) | |
| Connector Type(s) | 1 - Molex (4 pin; PWM) Female |
| Special Notes / Requirements | |
| System and Cable Requirements | 4-pin PWM fan connector (male) |
| Power | |
| Input Current | 320 mA |
| Input Voltage | 12 DC |
| Environmental | |
| Humidity | 0 ~ 65% RH |
| Operating Temperature | -10°C to 70°C (14°F to 158°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Physical Characteristics | |
| Cable Length | 11.6 in [295 mm] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 1 in [25 mm] |
| Product Length | 4.7 in [120 mm] |
| Product Weight | 4.5 oz [128 g] |
| Product Width | 4.7 in [120 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 6.8 oz [194 g] |
| What's in the Box | |
| Included in Package | 1 - 120mm Case Fan |
| 1 - 9 inch PWM Y-Cable |
|
|
