Startech PEXUSB4DP
Pcie - 4x usb port bővítő

illesztés: PCIe x1, USB2.0: 4db, PCI-E x1: 1dbillesztés: PCIe x1, USB2.0: 4db, PCI-E x1: 1db

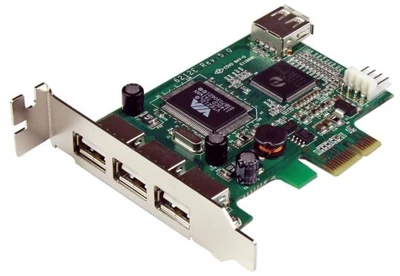

The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance.

Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation.

Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.

The StarTech.com Advantage

• Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
• Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

Bus Type	PCI Express
Card Type	Low Profile (SP bracket incl.)
Chipset ID	VIA - VT6212
Industry Standards	PCI Express One Lane 2.5Gb/s
Interface	USB 2.0
Ports	4
Performance
Type and Rate	USB 2.0 - 480 Mbit/s
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	3 - USB A (4 pin) Female
Internal Ports	1 - SP4 (4 pin; Small Drive Power) Male
	1 - USB A (4 pin) Female
Software
OS Compatibility	Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000 Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.x (tested up to 10.10) Linux
Special Notes / Requirements
System and Cable Requirements	PCI Express enabled computer with an available PCI Express x1 slot or higher
Environmental
Humidity	80% RH
Operating Temperature	-0°C to 75°C (32°F to 167°F)
Storage Temperature	-40°C to 125°C (-40°F to 257°F)
Physical Characteristics
Product Height	0.8 in [20 mm]
Product Length	3.5 in [90 mm]
Product Weight	1.6 oz [46 g]
Product Width	3.1 in [80 mm]
Packaging Inform...
