Startech PCIUSB7
Pci - 7x usb port bővítő

illesztés: PCI, USB2.0: 7db, PCI: 1db, 4 USB A külső, 1 USB A belső, 2 IDC belső illesztés: PCI, USB2.0: 7db, PCI: 1db, 4 USB A külső, 1 USB A belső, 2 IDC belső

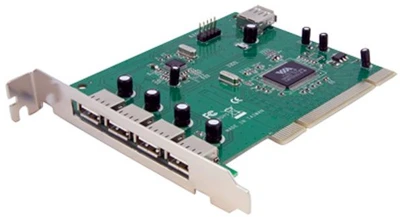

This PCI USB card adds seven USB 2.0 ports (1 internal USB A Female, 2 internal USB motherboard header, and 4 external USB A Female) to your PCI-capable PC.

The PCI USB 2.0 card is a versatile solution that lets you add USB 2.0 connections without having to upgrade the system motherboard.

An all-in-one solution, the PCI USB card supports USB 2.0 device connections for full data transfer speeds of up to 480Mbps, and is backward compatible with USB 1.1 devices (max. transfer rate 12Mbps), allowing you to connect any USB device to the computer without having to worry about compatibility issues.

Designed and constructed to provide long-lasting USB capability, the adapter card is backed by StarTech.com's free lifetime technical support.

The StarTech.com Advantage

• Maximize the availability of USB 2.0 ports for both external and internal USB 2.0/1.1/1.0 peripherals
• Backed by a StarTech.com lifetime warranty and free lifetime technical support

Bus Type	PCI / PCI-X (5 / 3.3V)
Card Type	Standard Profile
Chipset ID	VIA - VT6212
Industry Standards	EHCI 2.0
	OHCI 1.1
	PCI 2.2
	Power Management 1.1
Interface	USB 2.0
Ports	7
Performance
Maximum Data Transfer Rate	480 Mbps
Connector(s)
Connector Type(s)	1 - PCI / PCI-X (Universal 3.3 & 5V; 32-bit) Male
External Ports	4 - USB A (4 pin) Female
Internal Ports	1 - USB A (4 pin) Female
	2 - IDC (10 pin; Motherboard Header) Male
Software
Microsoft WHQL Certified	Yes
OS Compatibility	Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, ME, 98SE Windows Server® 2012, 2008 R2 Mac OS® 10.10 Linux
Special Notes / Requirements
System and Cable Requirements	Unused PCI slot
Physical Characteristics
Product Height	0.8 in [20 mm]
Product Length	4.8 in [122 mm]
