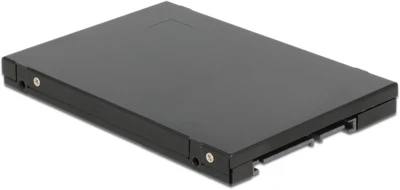

Delock 62590
2db m.2 ngff -> sata3 f/m konverter raid 0, 1, jbod

Description
This Delock converter enables you to connect up to two M.2 NGFF SSD in 2280, 2260, 2242 or 2230 format which can be used as a 2.5″ HDD. The converter can be installed into your system internally through an SATA 22 pin interface. When using more than one SSD, you have the possibility to use different RAID level.

Specification
• Connector:
  1 x SATA 6 Gb/s 22 pin female
  2 x 67 pin M.2 NGFF key B slot
• Interface: SATA
• Chipset: Asmedia ASM1092R
• Form factor: 2.5″
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key B
  or key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm, double-sided
  assembly possible
• Supports RAID 0, 1, JBOD
• RAID mode set by DIP switch on board
• 2 x LED for SATA host activity (green) and M.2 SSD error (red)
• Bootable
• Data transfer rate up to 6 Gb/s
• OS independent, no driver installation necessary

System requirements
• A free SATA 22 pin interface

Package content
• Converter
• 2.5″ enclosure
• Mounting material

Package
• Box
