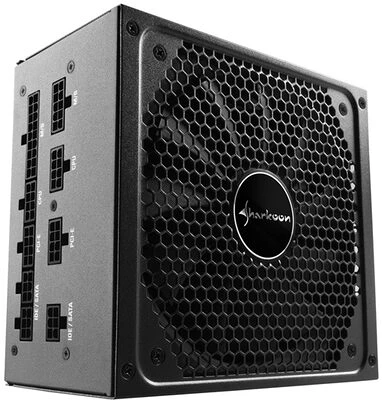

Sharkoon 650 W 20+4 PIN
650w 80+ gold silentstorm cool zero

General

Form Factor:ATX 2.4

Continuous Power:650 W

ErP Compliant:?

Active PFC:?

Warranty:3 Years

Technology:LL + DC/DC

Japanese Primary Capacitors:?

All Japanese Capacitors:?

MTBF:Min. 100,000 Hours

Operating Temperature:0 °C - 40 °C

Standby Power Consumption:0.16 W

Weight incl. Fixed Cables:2.6 kg

Dimensions (L x W x H):150 x 160 x 86 mm

Housing Color:Black



Input

Voltage:100 - 240 VAC

Frequency:50 - 60 Hz

Input Current (110/230 V):10 A



Output

12 V Rail(s):1

Load 3.3 V:22 A

Load 5 V:22 A

Max. Combined Power 3.3 V + 5 V:120 W

Load 12 V1:54.2 A

Max. Combined Power 12 V:650 W

Load 5 VSB:3 A

Load -12 V:0.3 A



Cable and Connectors

Cable Configuration:Fully Modular

Flat Cables:?

Maximum Cable Length:115 cm

Cable Length Mainboard Connector:56 cm

Cable Length CPU Connector:62.5 cm

Cable Length PCIe Connector:55 cm + 15 cm

Cable Length to First Peripheral Connector:55 cm

24-Pin Mainboard Connector:1

4+4-Pin CPU Connector:2

6+2-Pin PCIe Connector:4

SATA Connector:12

IDE Connector:2*

Floppy Connector:1*



Fan

Fan Size:135 mm

Bearing Type:Fluid Dynamic Bearing



Protections

OCP (Over Current Protection):?

OVP (Over Voltage Protection):?

UVP (Under Voltage Protection):?

SCP (Short Circuit Protection):?

OTP (Over Temperature Protection):?

OPP (Over Power Protection):?



Safety Certifications

CE:?

FCC:?

CB:?
