FEATURES
Highly Efficient Performance : The 80 PLUS Gold certification guarantees a minimum efficiency of 90%.
2 EPS Connectors : 2 EPS connectors included with all models for universal current generation motherboard compatibility.
120mm HDB Fan : 120mm Hydro Dynamic Fan bearing for improved cooling and noise reduction.
High Operating Temperature : The MWE Gold - V2 can operate safely at up to 50 degrees.
Full Modular Cabling : MWE Gold - V2 comes with full modular flat, black cables for increased airflow.
5 Year Warranty : All MWE Gold - V2 models come with a 5 year factory warranty from purchase date.
SPECIFICATIONS
Product Name

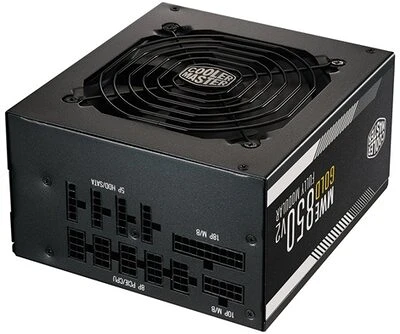

MWE Gold 850 - V2 (Full Modular)
Item Code
MPE-8501-AFAAG
ATX Version
ATX 12V
PFC
Active PFC
Input Voltage
90 - 264V
Input Current
12 - 6A
Dimensions (L x W x H)
140 x 150 x 86mm
Fan Size
120mm
Fan Bearing
HDB
Efficiency
90% @ Typical Load
80 PLUS Rating
80 PLUS Gold
ErP 2014 Lot 3
Yes
Operating Temperature
0~50°C
Hold Up Time
>16ms at 100% Load
MTBF
>100,000 hours
Connectors
ATX 24 Pin
x1
EPS 4+4 Pin
EPS 8 Pin
SATA
x12
Peripheral 4 Pin
x4
PCI-e 6+2 Pin
AC INPUT
90 - 264V~ 12 - 6A
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5Vstb
20A
70.8A
0.3A
3A
TOTAL POWER
120W
850W
850
