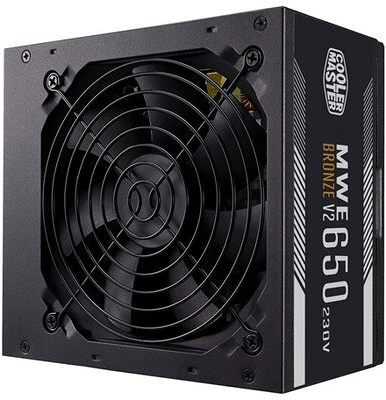

Cooler master MPE-6501-ACABW-BEU

Product Name

MWE 650 Bronze 230V V2

Item Code

MPE-6501-ACABW-B

ATX Version

Intel ATX 12V V2.52

PFC

Active PFC

Input Voltage

200-240V

Input Current

5A

Input Frequency

50-60Hz

Dimensions (L x W x H)

140 x 150 x 86mm

Fan Size

120mm

Fan Bearing

HDB

Fan Speed

2400 RPM

Noise @ 20%

16.54dB-A

Noise @ 50%

26.5dB-A

Noise @ 100%

42.5dB-A

Efficiency

88% Typically

80 PLUS Rating

80 PLUS Bronze EU 230V

ErP 2014 Lot 3

Yes

Power Good Signal

100 - 500ms

Hold Up Time

>14ms at 100% full load@230Vac

MTBF

>100,000 hours

Protections

OVP / OPP / SCP / UVP / OTP

Regulatory

CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

Connectors

ATX 24 Pin

x1

EPS 4+4 Pin

x1

EPS 8 Pin

x1

SATA

x6

Peripheral 4 Pin

x3

PCI-e 6+2 Pin

x4

AC INPUT

200-240V~ 5A 50-60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5Vstb

19A

19A

54A

0.3A

3A

TOTAL POWER

120W

648W

3.6W

15W

650W
