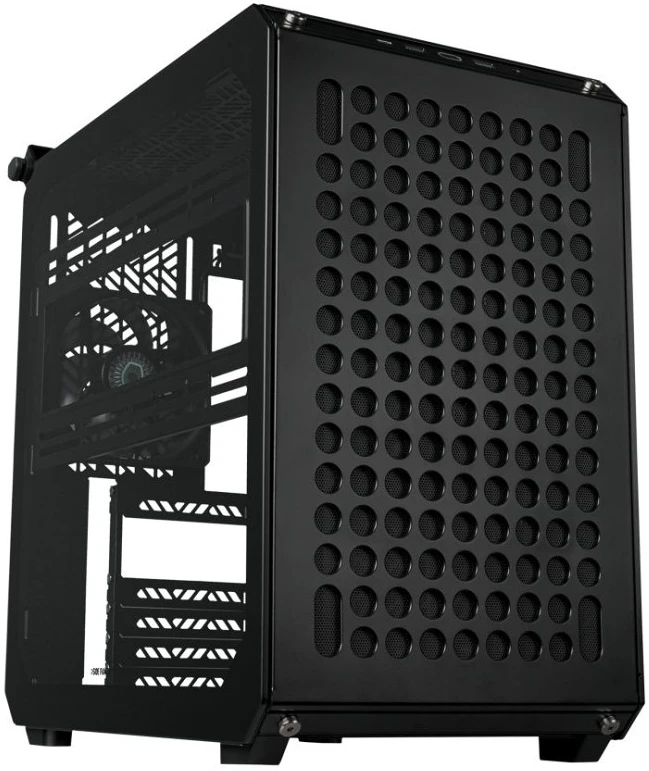

| Model Number | QUBE 500 Flatpack: Q500-KGNN-S00, QUBE 500 Flatpack White: Q500-WGNN-S00 | |
| Exterior Color | White, Black | |
| Materials - Exterior | Steel, Plastic, Tempered Glass | |
| Materials - Left Side Panel | Grey TG + Steel | |
| Dimensions (L x W x H) | 406 x 231 x 415mm (Incl. Protrusions), 380 x 231 x 381mm (excl. Protrusions) | |
| Volume | 33.44L (excl. Protrusions) | |
| Motherboard Support | ITX, Micro ATX, ATX, E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU) | |
|
|
|
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C | |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo | |
| Pre-installed Fans - Rear | QUBE 500 Flatpack: 1x 120mm (1800 RPM) SF Black PWM, QUBE 500 Flatpack White: 1x 120mm (1800 RPM) SF White PWM | |
| Fan Support - Front | 1x 120/140mm (x2 if PSU is mounted in bottom) | |
| Fan Support - Top | 2x 120/140mm | |
| Fan Support - Rear | 1x 120mm | |
| Fan Support - Bottom | 2x 120/140mm | |
| Fan Support - Left side | 2x 120/140mm | |
| Radiator Support - Front | 120mm, 140mm, (240/280mm w/ PSU in bottom) | |
| Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, (280mm can be used within 53mm thickness) | |
| Radiator Support - Rear | 120mm | |
| Radiator Support - Bottom | 120mm, 140mm, 240mm, 280mm | |
| Radiator Support - Left side | 120mm, 140mm, 240mm, 280mm | |
| Clearance - CPU Cooler | 164mm-172mm (Remove the water cooling bracket) | |
| Clearance - PSU | 173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space) | |
|
| Cable Routing - Behind Motherboard Tray | 29-32mm | |
| Handle | QUBE 500 Flatpack: Black x 1, QUBE 500 Flatpack White: Grey x 1 | |
| Gem Mini | QUBE 500 Flatpack: Black x 1, QUBE 500 Flatpack White: Grey x 1 | |
| Dust Filters | Front, Top, Bottom, Right side | |
| Power Supply Support | SFX, SFX-L, ATX | |
|
|
|
