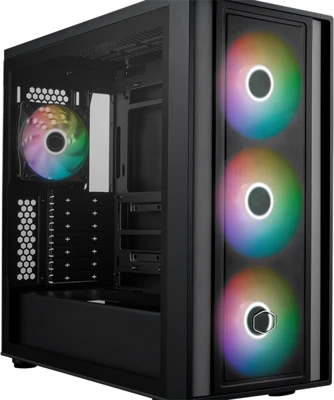

| Model Number | MasterBox 600 Black:MB600-KGNN-S00 MasterBox 600 White:MB600-WGNN-S00 | |
| Exterior Color | White, Black | |
| Materials - Exterior | Steel, Plastic | |
| Materials - Side Panel | Tempered Glass | |
| Dimensions (L x W x H) | 474 x 230 x 481mm (Incl. Protrusions)/ 465 x 230 x 465mm (Excl. Protrusions) | |
|
| Motherboard Support | ITX, Micro ATX, ATX (Supporting Back-connector Motherboard), E-ATX (*up to 12"x10.9", 30.5cmx27.7cm motherboards, may impact cable management) | |
|
|
| Drive Bays 2.5" SSD | 2 (Max.6) | |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C | |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo | |
| Included Accessories | ARGB Fans Hub | |
| Pre-installed Fans - Front | 3x 140mm SickleFlow140 ARGB PWM (650~1800 rpm) | |
| Pre-installed Fans - Rear | 1x 120mm CF120 ARGB (650~1200 rpm) | |
| Fan Support - Front | 3x 120/140mm | |
| Fan Support - Top | 3x 120mm / 2x 140mm | |
| Fan Support - Rear | 1x 120mm | |
| Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (Limit: 457*140*27mm) | |
| Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm | |
| Radiator Support - Rear | 120mm | |
| Clearance - CPU Cooler | 170mm | |
| Clearance - PSU | 170mm, 210mm (w/o HDD Cage) | |
| Clearance - GFX | 360mm, 410mm (w/o front radiator) | |
| Cable Routing - Behind Motherboard Tray | 33-35 mm | |
|
|
|
|
|
