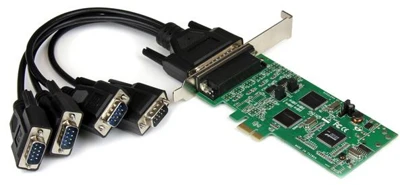

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.
A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Hardware | |
|---|---|
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | SystemBase - SB16C1052PCI |
| Interface | Serial |
| Port Style | Dongle (Included) |
| Ports | 4 |
| Performance | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 256 Bytes |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Max Baud Rate | 460.8 Kbps |
| Parity | None, Odd, Even, Space, Mark |
| Serial Protocol | RS-232/422/485 |
| Stop Bits | 1, 1.5, 2 |
| Supported Protocols | RS-232, RS-422, RS-485 2-wire / 4-wire |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |
| External Ports | 4 - DB-9 (9 pin; D-Sub) Male |
| Software | |
| OS Compatibility | Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000 Windows Server® 2012, 2008 R2, 2003 Linux 2.6.x |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express slot |
| Environmental | |
| Humidity | 20~80% RH |
| Operating Temperature | 0°C to 100°C (32°F to 212°F) |
| Storage Temperature | 0°C to 150°C (32°F to 302°F) |
| Physical Characteristics | |
| Product Height | 2.7 in [69 mm] |
| Product Length | 5.3 in [134 mm] |






|
