Startech PCI2S4851050
Pci - 2x db-9 port bővítő

illesztés: PCI, soros port: 2db, low profile, PCI: 1db, RS422/485illesztés: PCI, soros port: 2db, low profile, PCI: 1db, RS422/485

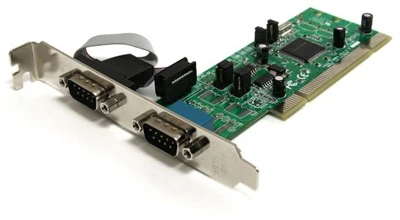

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

• Much larger FIFO buffer than standard serial cards (256 byte vs. 32 or 64 byte) minimizes data loss and optimizes host efficiency
• A simple jumper change allows you to select either RS422 or RS485 serial interface formats specific to your application
• Standard and low profile/half-height bracket included, ensuring easy installation into almost any system

Bus Type	PCI / PCI-X (5 / 3.3V)
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	SystemBase -SB16C1052PCI
Industry Standards	PCI Local Bus Specification 2.3 PCI Power Management 1.1
Interface	Serial
Port Style	Integrated on Card
Ports	2
Performance
Data Bits	5, 6, 7, 8
FIFO	256 Bytes
Flow Control	Xon, Xoff, RTS#, CTS#
Max Baud Rate	128 Kbps
Parity	Even, Odd, or No Parity
Serial Protocol	RS-422/485
Stop Bits	1, 1.5, 2
Connector(s)
Connector Type(s)	1 - PCI / PCI-X (Universal 3.3 & 5V; 32-bit) Male
External Ports	2 - DB-9 (9 pin; D-Sub) Male
Software
OS Compatibility	Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2, 2003, 2000 (32/64) Linux 2.4.x / 2.6.x
Environmental
Humidity	5~85% RH
Operating Temperature	-10°C to 80°C (14°F to 176°F)
Storage Temperature	-20°C to 100°C (-4°F to 212°F)
