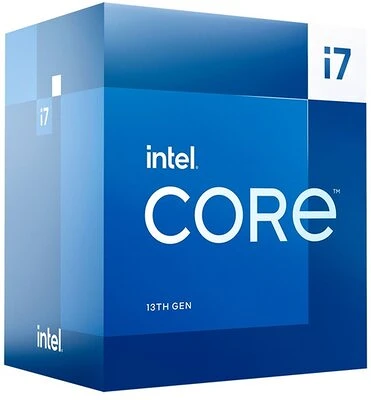

Intel BX8071513700
Core i7 13700 lga1700 box processzor

Technikai paraméterek
Család	Intel® Core™ i7
Órajel	2100 MHz
Magok száma	16 db
L3 Cache	30 MB
Fogyasztás	65 Watt
VGA típus	Intel UHD Graphics 770
Fizikai jellemzők
CPU foglalat	Intel LGA1700

Essentials

Download Specifications

Product Collection

13th Generation Intel® Core™ i7 Processors

Code Name

Products formerly Raptor Lake

Vertical Segment

Desktop

Processor Number

i7-13700

Lithography

Intel 7

Recommended Customer Price

$384.00 - $394.00

Use Conditions

PC/Client/Tablet, Workstation

CPU Specifications

Total Cores

16

# of Performance-cores

8

# of Efficient-cores

8

Total Threads

24

Max Turbo Frequency

5.20 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency ‡

5.20 GHz

Performance-core Max Turbo Frequency

5.10 GHz

Efficient-core Max Turbo Frequency

4.10 GHz

Performance-core Base Frequency

2.10 GHz

Efficient-core Base Frequency

1.50 GHz

Cache

30 MB Intel® Smart Cache

Total L2 Cache

24 MB

Processor Base Power

65 W

Maximum Turbo Power

219 W

Supplemental Information

Marketing Status

Launched

Launch Date

Q1'23

Embedded Options Available

Yes

Memory Specifications

Max Memory Size (dependent on memory type)

128 GB

Memory Types

Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels

2

Max Memory Bandwidth

89.6 GB/s

ECC Memory Supported ‡

Yes

Processor Graphics

Processor Graphics ‡

Intel® UHD Graphics 770

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.60 GHz

Graphics Output

eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units

32

Max Resolution (HDMI) ‡

4096 x 2160 @ 60Hz

Max Resolution (DP)‡

7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

5120 x 3200 @ 120Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3.0

Multi-Format Codec Engines

2

Intel® Quick Sync Video

Yes

Intel® Clear Video HD Technology

Yes

# of Displays Supported ‡

4

Device ID

0xA780

Expansion Options

Direct Media Interface (DMI) Revision

4.0

Max # of DMI Lanes

8

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations ‡

Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes

20

Package Specifications

Sockets Supported

FCLGA1700

Max CPU Configuration

1

Thermal Solution Specification

PCG 2020C

T JUNCTION

100°C

Package Size

45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator

3.0

Intel® Thread Director

Yes

Intel® Deep Learning Boost (Intel® DL Boost)

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Max Technology 3.0 ‡

Yes

Intel® Turbo Boost Technology ‡

2.0

Intel® Hyper-Threading Technology ‡

Yes

Intel® 64 ‡

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Volume Management Device (VMD)

Yes

Security & Reliability

Intel® Standard Manageability (ISM) ‡

Yes

Intel® Control-Flow Enforcement Technology

Yes

Intel® AES New Instructions

Yes

Secure Key

Yes

Intel® OS Guard

Yes

Intel® Trusted Execution Technology ‡

Yes

Execute Disable Bit ‡

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Virtualization Technology (VT-x) ‡

Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡

Yes

Intel® VT-x with Extended Page Tables (EPT) ‡

Yes
