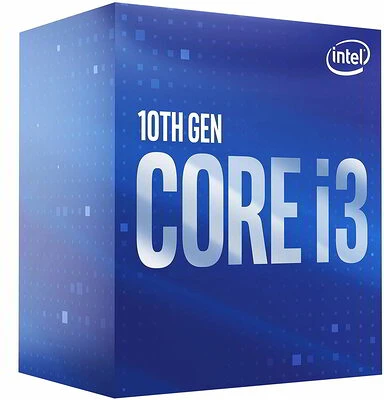

Intel BX8070110105
S1200 core i3-10105 - 3,70ghz

Essentials

• Product Collection 10th Generation Intel® Core™ i3 Processors
• Code Name Products formerly Comet Lake
• Vertical Segment Desktop
• Processor Number i3-10105
• Status Launched
• Launch Date Q1'21
• Lithography 14 nm
• Use Conditions PC/Client/Tablet

CPU Specifications

• # of Cores 4
• # of Threads 8
• Processor Base Frequency 3.70 GHz
• Max Turbo Frequency 4.40 GHz
• Cache 6 MB Intel® Smart Cache
• Bus Speed 8 GT/s
• Intel® Turbo Boost Technology 2.0 Frequency ‡ 4.40 GHz
• TDP 65 W

Supplemental Information

• Embedded Options Available No
• Datasheet View now

Memory Specifications

• Max Memory Size (dependent on memory type) 128 GB
• Memory Types DDR4-2666
• Max # of Memory Channels 2
• Max Memory Bandwidth 41.6 GB/s
• ECC Memory Supported ‡ No

Processor Graphics

• Processor Graphics ‡ Intel® UHD Graphics 630
• Graphics Base Frequency 350 MHz
• Graphics Max Dynamic Frequency 1.10 GHz
• Graphics Video Max Memory 64 GB
• 4K Support Yes, at 60Hz
• Max Resolution (HDMI) ‡ 4096 x 2160@30Hz
• Max Resolution (DP)‡ 4096 x 2304@60Hz
• Max Resolution (eDP - Integrated Flat Panel)‡ 4096 x 2304@60Hz
• DirectX* Support 12
• OpenGL* Support 4.5
• Intel® Quick Sync Video Yes
• Intel® InTru™ 3D Technology Yes
• Intel® Clear Video HD Technology Yes
• Intel® Clear Video Technology Yes
• # of Displays Supported ‡ 3
• Device ID 0x9BC8

Expansion Options

• Scalability 1S Only
• PCI Express Revision 3.0
• PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
• Max # of PCI Express Lanes 16

Package Specifications

• Sockets Supported FCLGA1200
• Max CPU Configuration 1
• Thermal Solution Specification PCG 2015C
• T JUNCTION 100°C
• Package Size 37.5mm x 37.5mm

Advanced Technologies

• Intel® Optane™ Memory Supported ‡ Yes
• Intel® Thermal Velocity Boost No
• Intel® Turbo Boost Max Technology 3.0 ‡ No
• Intel® Turbo Boost Technology ‡ 2.0
• Intel vPro® Platform Eligibility ‡ No
• Intel® Hyper-Threading Technology ‡ Yes
• Intel® Virtualization Technology (VT-x) ‡ Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
• Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
• Intel® Transactional Synchronization Extensions No
• Intel® 64 ‡ Yes
• Instruction Set 64-bit
• Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States Yes
• Enhanced Intel SpeedStep® Technology Yes
• Thermal Monitoring Technologies Yes
• Intel® Identity Protection Technology ‡ Yes
• Intel® Stable Image Platform Program (SIPP) No

Security & Reliability

• Intel® AES New Instructions Yes
• Secure Key Yes
• Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME
• Intel® OS Guard Yes
• Intel® Trusted Execution Technology ‡ No
• Execute Disable Bit ‡ Yes
• Intel® Boot Guard Yes
