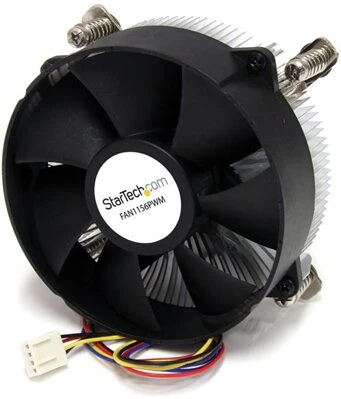

The FAN1156PWM CPU Cooler with PWM Cooling Fan for Socket LGA1156/1155 systems provides reliable and efficient cooling for compatible Intel® Core™ i3/i5/i7 CPUs.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- PWM control allows for dynamically variable fan speeds for maximum efficiency
- 95mm Ever Lubricate bearing fan for increased reliability and lifespan compared to traditional sleeve-bearing designs
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
| Hardware |
| Fan Bearing Type | Ever Lubricate Bearing |
| Fan Dimensions (Number / Dimensions) | 95mm x 95mm x 25mm |
| Heatsink Dimensions | 95mm x 95mm x 20mm |
| Heatsink Type | Aluminum |
| Number of Conductors | 4 |
| Performance |
| Air Flow Rate | 65.61 (max) CFM |
| Fan RPM | 1000 ~ 3000 RPM |
| MTBF | 40,000 Hours |
| Noise Level | <33 dBA |
| Connector(s) |
| Connector Type(s) | 1 - Molex (4 pin; PWM) Female |
| Special Notes / Requirements |
| System and Cable Requirements | Socket LGA1156/LGA1155 motherboard |
| Power |
| Input Current | 350 mA |
| Input Voltage | 12 DC |
| Environmental |
| Humidity | 0 ~ 65% RH |
| Operating Temperature | -10°C ~ 70°C (14°F ~ 158°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Physical Characteristics |
| Product Height | 2.2 in [55 mm] |
| Product Length | 3.7 in [95 mm] |
| Product Weight | 9.6 oz [272 g] |
| Product Width | 3.7 in [95 mm] |
| Packaging Information |
| Package Quantity | 1 |
