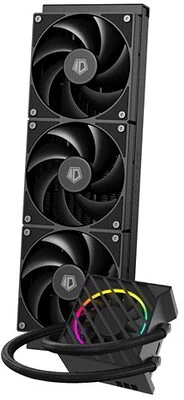

Id cooling DASHFLOW360XTLITE
Dashflow 360 xt lite

Compatibility

Intel LGA2066/2011/1700/1200/115X

AMD AM5/AM4

TDP

350W

Radiator Dimension

396×120×27mm

Radiator Material

Aluminum

Tube Material

Premium Sleeved Tubing

Tube Length

465mm

Waterblock Dimension

94x90x62mm

Cold Plate Material

Copper

Pump Current

0.32A MAX.

Pump Speed

0~2500RPM

Pump Bearing

Ceramic Bearing

Pump Life Expectancy

50,000 Hrs

Pump Noise Level

≤25dB(A)

Rated Voltage

12VDC

Operating Voltage

10.8~13.2VDC

Started Voltage

7VDC

Power Input

3W

Connector

4Pin PWM

Fan on Radiator

Fan on Pump

Fan Dimension

120×120×25mm

70×70×15mm

Fan Speed

500±200~2000±10%RPM

800~2800±10%RPM

Max. Static Pressure

2.68mmH2O

1.92mmH2O

Max. Air Flow

78.25CFM

23.0CFM

Noise Level

29.85dB(A) Max.

28.0dB(A) Max.

Current Input

0.25A

0.08A

LED Lighting

N/A

5V ARGB

Bearing

Fluid Dynamic Bearing

Ball Bearing
