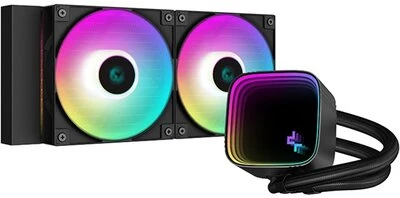

Deepcool LS520 SE

Deepcool LS520 SE
Ls520 se

LGA1155, LGA1200, LGA1700, sAM4, sAM5, ventillátorok száma: 2db, 120x120x25mm, folyadékcsapágy, csatlakozó: 4-pin (PWM) + 3-pin, világítás: ARGB, RGB-syncLGA1155, LGA1200, LGA1700, sAM4, sAM5, ventillátorok száma: 2db, 120x120x25mm, folyadékcsapágy, csatlakozó: 4-pin (PWM) + 3-pin, világítás: ARGB, RGB-syncGarancia: 36 Hónap

Application For

Intel

LGA1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Net Weight	1346 g
Radiator Dimensions	282×120×27 mm
Radiator Material	Aluminum
Tube length	410 mm
Pump Dimensions	85×73×55 mm
Pump Speed	3100 RPM±10%
Pump Noise	19 dB(A)
Pump Connector	3-pin
Pump Rated Voltage	12 VDC
Pump Rated Current	0.38 A
Pump Power Consumption	4.56 W
Fan Dimensions	120×120×25 mm
Fan Speed	500~2250 RPM±10%
Fan Airflow	85.85 CFM
Fan Air Pressure	3.27 mmAq
Fan Noise	≤32.9 dB(A)

Fan Speed (with LSP)	500~1600 RPM±10%
Fan Airflow (with LSP)	60.85 CFM
Fan Air Pressure (with LSP)	1.65 mmAq
Fan Noise (with LSP)	≤28.2 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.25 A
Fan Power Consumption	3.0 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.7 W(PUMP)/ 2.1 W(FAN×2)
