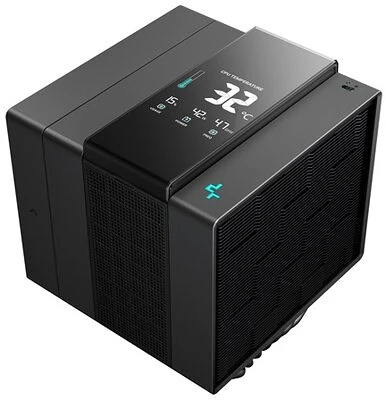

Deepcool ASSASSIN IV VC VISION
Assassin iv vc vision

Specification

Model

R-ASN4-BKNVMD-G

Application For

Intel: LGA2066/2011-v3/2011/1700/1200/1150/1151/1155

AMD: AM5/AM4

Product Dimensions

147×144×172 mm(L×W×H)

Heatsink Dimensions

140×110×160 mm(L×W×H)

Net Weight

1780 g

Heatpipe

O6 mm×7 pcs

Fan Dimensions

140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)

Fan Speed (Performance Mode)

500~1800 RPM±10% / 500~1700 RPM±10%

Fan Airflow (Performance Mode)

61.25 CFM / 58.06 CFM

Fan Air Pressure (Performance Mode)

3.76 mmAq / 2.1 mmAq

Overall Noise (Performance Mode)

≤29.3 dB(A)

Fan Speed (Quiet Mode)

500~1450 RPM±10% / 500~1350 RPM±10%

Fan Airflow (Quiet Mode)

48.55 CFM / 46.75 CFM

Fan Air Pressure (Quiet Mode)

2.46 mmAq / 1.35 mmAq

Overall Noise (Quiet Mode)

≤22.6 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Fluid Dynamic Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.2 A / 0.2 A

Fan Power Consumption

2.4 W / 2.4 W

Rated Voltage

12 VDC

Power Consumption (Performance Mode)

4.8 W

Power Consumption (Quiet Mode)

3.6 W

Display Module Rated Voltage

0.08 A±10%

Display Module Rated Current

5 VDC

Display Module Power Consumption

0.4 W

Display Area

44.6x53.6 mm

Warranty

6 Years
