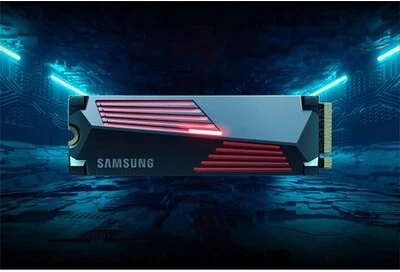

Samsung MZ-V9P1T0GW

Samsung MZ-V9P1T0GW
990 pro with heatsink nvme™ m.2 ssd 1tb

• MZ-V9P1T0CW(1TB)
  MZ-V9P1T0GW(1TB)

• MZ-V9P2T0CW(2TB)
  MZ-V9P2T0GW(2TB)

• APPLICATION

  Client PCs, Game Consoles

• FORM FACTOR

  M.2 (2280)

• INTERFACE

  PCIe Gen 4.0 x4, NVMe 2.0

• DIMENSION (WxHxD)

  80 x 24.3 x 8.2 mm
  (with heatsink)

• WEIGHT

  Max 28.0g Weight

• STORAGE MEMORY

  Samsung V-NAND 3-bit TLC

• CONTROLLER

  Samsung in-house Controller

• CACHE MEMORY

  Samsung 1GB Low Power DDR4 SDRAM (1TB)
  Samsung 2GB Low Power DDR4 SDRAM(2TB)

• TRIM SUPPORT

  Supported

• S.M.A.R.T SUPPORT

  Supported

• GC (GARBAGE COLLECTION)

  Auto Garbage Collection Algorithm

• ENCRYPTION SUPPORT

  AES 256-bit Encryption (Class 0) TCG/Opal
  IEEE1667 (Encrypted drive)

• WWN SUPPORT

  Not supported

• DEVICE SLEEP MODE SUPPORT

  Yes

• SEQUENTIAL READ

  1TB: Up to 7,450 MB/s
  2TB: Up to 7,450 MB/s

• SEQUENTIAL WRITE

  1TB: Up to 6,900 MB/s
  2TB: Up to 6,900 MB/s

• RANDOM READ (4KB, QD32)

  1TB: Up to 1,200,000 IOPS
  2TB: Up to 1,400,000 IOPS

• RANDOM WRITE (4KB, QD32)

  1TB: Up to 1,550,000 IOPS
  2TB: Up to 1,550,000 IOPS

• RANDOM READ (4KB, QD1)

  1TB: Up to 22,000 IOPS
  2TB: Up to 22,000 IOPS

• RANDOM WRITE (4KB, QD1)

  1TB: Up to 80,000 IOPS
  2TB: Up to 80,000 IOPS

• AVERAGE POWER CONSUMPTION
  (SYSTEM LEVEL) 3)

  1TB: Average 5.4 W Maximum 7.8 W (Burst mode)
  2TB: Average 5.5 W Maximum 8.5 W (Burst mode)

• POWER CONSUMPTION (IDLE) 3)

  1TB: Max. 50 mW
  2TB: Max. 55 mW

• POWER CONSUMPTION (DEVICE SLEEP)

  1TB: Max. 5mW
  2TB: Max. 5mW

• ALLOWABLE VOLTAGE

  3.3 V ± 5 % Allowable voltage

• RELIABILITY (MTBF)

  1.5 Million Hours Reliability (MTBF)

• OPERATING TEMPERATURE

  0 - 70 ℃ Operating Temperature

• SHOCK

  1,500 G & 0.5 ms (Half sine)

• INSTALLATION KIT

  Not Available

• MANAGEMENT SW

  Magician Software for SSD management

• MZ-V9P1T0CW (1TB)

  5-Year Limited Warranty or 600 TCW Limited Warranty

• MZ-V9P2T0CW (2TB)

  5-Year Limited Warranty or 1200 TCW Limited Warranty
