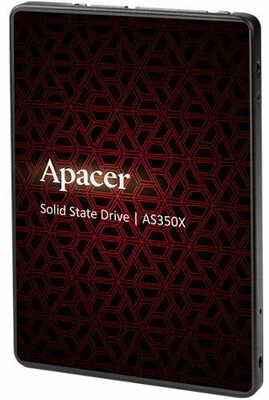

Apacer AP128GAS350XR-1
128gb 2,5" sata3 as350x

Specifications Overview: ? Compliance with SATA Revision 3.1 – SATA 6.0 Gbps interface – Backward compatible with SATA 1.5 and 3.0 Gbps interfaces ? Capacity – 128GB, 256GB, 512GB, 1TB ? Performance* – Seq. Read / Write: 128GB : Up to 560 / 540 MB/s 256GB : Up to 560 / 540 MB/s 512GB : Up to 560 / 540 MB/s 1TB : Up to 560 / 540 MB/s – (4K) Random Read / Write 128GB : Up to 38K / 75K IOPS 256GB : Up to 38K / 75K IOPS 512GB : Up to 87K / 80K IOPS 1TB : Up to 93K / 80K IOPS ? Flash Management – Global Wear Leveling – S.M.A.R.T. – Power Failure Management – TRIM ? NAND Flash Type: 3D NAND ? MTBF: 1,500,000 hours ? Endurance (in Terabytes Written: TBW) – 128 GB: 75 TBW – 256 GB: 180 TBW – 512 GB: 425 TBW – 1 TB: 835 TBW ? Temperature Range – Operating: Standard: 0°C to 70°C – Storage: -40°C to 85°C ? Supply Voltage – 5.0 V ± 5% ? Power Consumption* – Active mode: 1,260 mW (128GB) 1,450 mW (256GB) 1,360 mW (512GB) 1,620 mW (1TB) – Idle mode: 320 mW (128GB) 325 mW (256GB) 320 mW (512GB) 320 mW (1TB) ? Connector Type – 7-pin SATA signal connector – 15-pin SATA power connector ? Form Factor – 2.5” – Dimensions with 7mm enclosure: 100.00 x 69.85 x 6.90, unit: mm ? Shock & Vibration** – Shock:1,500 G – Vibration: 15 G ? SATA Power Management Modes ? RoHS Comply
