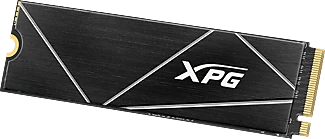

A-data AGAMMIXS70B-1T-CS
1tb m.2 2280 nvme gammix xpg s70 blade

Család
Család	ADATA GAMMIX S70 Blade M.2
Technikai paraméterek
Formátum	M.2 PCIe Gen 4x4
Háttértár méret	1024 GB
Olvasási sebesség max.	7400 MB/s
Írási sebesség max.	6400 MB/s

Capacity

512GB / 1TB / 2TB / 4TB

Form Factor

M.2 2280

NAND Flash

3D NAND

Controller

Innogrit IG5236

Dimensions (L x W x H)

80 x 22 x 4.3mm / 3.15 x 0.87 x 0.17inch (with heatsink),
80 x 22 x 3.3mm / 3.15 x 0.87 x 0.12inch (without heatsink)

Weight

10g / 0.35oz (with heatsink),
7g / 0.24oz (without heatsink)

Interface

PCIe Gen4x4

Sequential Read (Max*)

Up to 7400MB/s (PC/Laptop),
Up to 6300MB/s (PS5)

Sequential Write (Max*)

Up to 6800MB/s

4KB Random Read IOPS(Max*)

Up to 750K

4KB Random Write IOPS(Max*)

Up to 750K

Operating Temperature

0°C - 70°C

Storage Temperature

-40°C - 85°C

Shock Resistance

1500G / 0.5ms

MTBF

2,000,000 hours

Terabytes Written (TBW)(Max Capacity*)

2960TB

Warranty

5-year limited warranty

Note

1. 1. This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations.
2. 2. This product is backward compatible with PCIe 3.0. If a third-generation PCIe motherboard is used, this product will be able to achieve sequential read/write speeds of 3400/3000MB per second.
3. 3. Test system configuration : Motherboard ASRock X570 Taichi, CPU AMD Ryzen 7 5800X, CrystalDiskMark 7.0.0
4. 4. The SSD is based on the TBW or Warranty period.
5. Visit www.adata.com/us/support/xpg?tab=warranty&warranty=warrantyService for more details.
