Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.

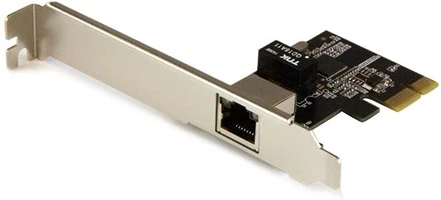

The performance and reliability you demand in network connectivityThis Gigabit Ethernet network card utilizes the Intel® I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solutionCompatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
Easy installationWith a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed. The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Intel I210-AT |
| Industry Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T |
| IEEE 802.1Q VLAN Tagging | |
| IEEE 802.3x Full Duplex Flow Control | |
| Ports | 1 |
| Performance | |
|---|---|
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 2000 Mbps (full-duplex) |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x4 Male |
| 1 - RJ-45 Female | |
| Software | |
| OS Compatibility | Windows® 10 (32/64), 8 / 8.1 , 7 (32/64) Windows Server® 2012 R2, 2008 R2 Linux 2.4.x... |
|
|
