Startech ST1000SPEXD4
.com gigabit ethernet card

RJ45: 2db, PCI-E x1: 1dbRJ45: 2db, PCI-E x1: 1db

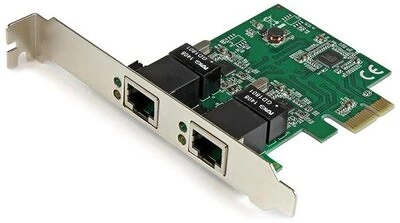

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.

Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.

The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

• Protect critical networked systems with a redundant and independent Gigabit port
• Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
• Maximize the networking efficiency of your virtualized server, with dedicated ports

Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Realtek - RTL8111E Asmedia - ASM1182E
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
	PCI Express Base Specification 2.0
Interface	RJ45 (Gigabit Ethernet)
Port Style	Integrated on Card
Ports	2
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Maximum Data Transfer Rate	2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
Supported Protocols	IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	2 - RJ-45 Female
Software
OS Compatibility	Windows® 10 (32/64), 8.1 / 8 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows® Server 2012, 2008 R2, 2003(32/64) Mac OS 10.4 and up (Tested up to 10.10) Linux 2.4.x and up (Tested up to 3.5)
Special Notes / Requirements
System and Cable Requirements	Available PCI Express slot
Indicators
