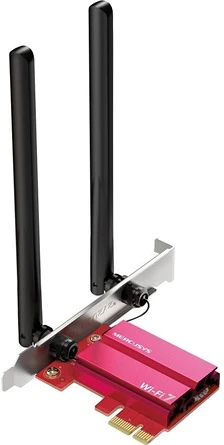

Mercusys MA37BE
Be6500 6,5gb/s pcie x1 tri-band wi-fi bluetooth hálózati adapter (bt5.4)

IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), antennák száma: 2db, antenna: külső fix, PCI-E x1: 1db, szürke-feketeIEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), antennák száma: 2db, antenna: külső fix, PCI-E x1: 1db, szürke-feketeGarancia: 3 Év Wireless Standards

IEEE 802.11 a/n/ac/ax/be 6 GHz

IEEE 802.11 a/n/ac/ax/be 5 GHz

IEEE 802.11 b/g/n/ax/be 2.4 GHz

WiFi Speeds

2882 Mbps on 6 GHz
2882 Mbps on 5 GHz
688 Mbps on 2.4 GHz

Reception Sensitivity

6 GHz:
11ax HE160 MCS0:-86 dBm
11ax HE160 MCS11:-56 dBm

5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Wireless Dimensions

228 × 120.8 × 21.5 mm (9.0 × 4.8 × 0.85 in )

Antenna Type

2× Fixed High-Performance Omni-Directional Antennas

Hardware Package Contents

BE6500 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter (MA37BE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

System Requirements

Compatible with Windows 11(64-bit)

Others
