Startech PEX1394B3
Pcie - firewire 400 + 2x firewire 800 port bővítő

illesztés: PCIe x1, FireWire A, FireWire B, low profile, PCI-E x1: 1dbillesztés: PCIe x1, FireWire A, FireWire B, low profile, PCI-E x1: 1db

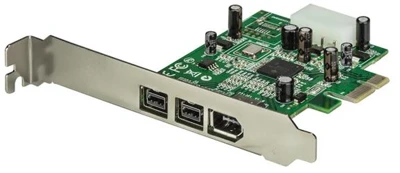

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).

The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.

The StarTech.com Advantage

• Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices
• Utilizes a native PCI Express chipset design rather than a bridge chip, ensuring a fast, reliable and cost-effective FireWire expansion
• Backed by a StarTech.com lifetime warranty and free lifetime technical suppor

Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	LSI/Agere - FW643
Industry Standards	IEEE-1394/1394A/1394B OHCI PCI 2.2
Interface	FireWire 800 (1394b)
Ports	3
Performance
Maximum Data Transfer Rate	800 Mbps
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	1 - Firewire 400 (6 pin; IEEE 1394a) Female
	2 - Firewire 800 (9 pin; IEEE 1394b) Female
Internal Ports	1 - SP4 (4 pin; Small Drive Power) Male
Software
OS Compatibility	Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, ME, 98SE Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.x (tested up to 10.11) Linux
Special Notes / Requirements
Note	The software included with this product supports a "typical" driver install only. Custom driver setup requires software purchase from a 3rd party
System and Cable Requirements	PCI Express enabled computer with an available PCI Express x1 slot or higher
Environmental
Humidity	0~90% RH
Operating Temperature	0°C to 70°C (32°F to 158°C)
Storage Temperature	-20°...
