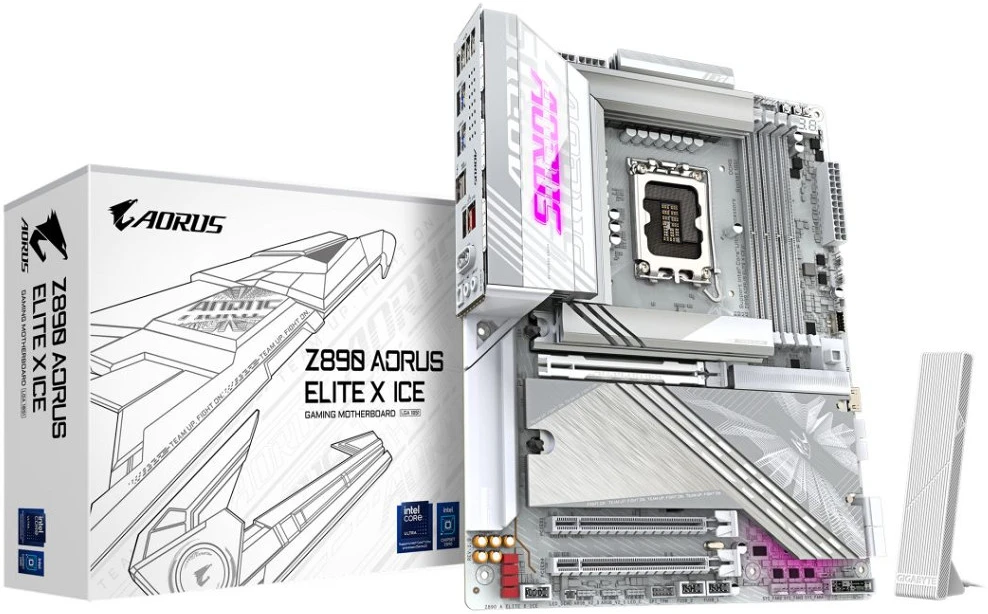

Gigabyte Z890AORUSELITEXICE
Desktop alaplap atx

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processor
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.

Chipset

Intel® Z890 Express Chipset

Memory

Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) / 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configurationmay affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Onboard Graphics

* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors,"for more information.)
* Support for DisplayPort 1.4 version and HDCP 2.3

* Support for HDMI 1.4 version.

Audio

* The back panel line out jack supports DSD audio.

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Expansion Slots

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Storage Interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

CPU:
- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
*Support up to 40Gbps with Thunderbolt devices
*Support up to 20Gbps with USB4 devices
*Support up to 10Gbps with USB 3.2 devices

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+3 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x HDMI port (Note)
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x noise detection header
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors

4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
