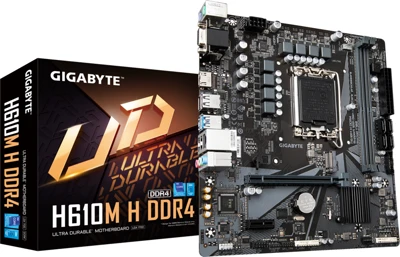

Gigabyte H610M H DDR4
Gugabyte h610 s1700 2xddr4 4xsata3 1xm.2 2xpci-e gbit lan matx

Intel ® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Intel ® GbE with cFosSpeed , Anti-Sulfur Resistor, Smart Fan 6

• Supports 12th Gen Intel ® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 6+1+1 Hybrid Digital VRM Design
• Intel ® GbE LAN with cFosSpeed Internet Accelerator Software
• NVMe PCIe 3.0 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

* Actual support may vary by CPU.

• CPU

  1. LGA1700 socket: Support for 12th Generation Intel ® Core™, Pentium ® Gold and Celeron ® Processors*
  2. L3 cache varies with CPU

  * Please refer to "CPU Support List" for more information.

• Chipset

  1. Intel ® H610 Express Chipset

• Memory

  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel ® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek ® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

• LAN

  1. Intel ® GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
     (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
  2. 1 x PCI Express x1 slot
     (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

• Storage Interface

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors

• USB

  Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 4 x USB 2.0/1.1 ports on the back panel

  Chipset+USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 Socket 3 connector
  4. 4 x SATA 6Gb/s connectors
  5. 1 x CPU fan header
  6. 2 x system fan headers
  7. 1 x RGB LED strip header
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  13. 1 x serial port header
  14. 1 x Clear CMOS jumper

• Back Panel Connectors

  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x HDMI 2.0 port
  5. 2 x USB 3.2 Gen 1 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks

• I/O Controller

  1. iTE ® I/O Controller Chip

• H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     Ambient LED
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install

• Bundled Software

  1. Norton ® Internet Security (OEM version)
  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 23.0cm x 21.5cm
