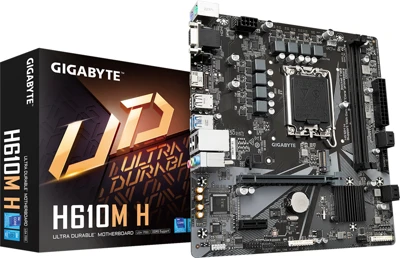

Gigabyte H610M H
H610m h

CPU

1. LGA1700 socket: Support for 13th Generation Intel ® Core™ Processors and 12th Generation Intel ® Core™, Pentium ® Gold and Celeron ® Processors*
2. L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.

Chipset

1. Intel ® H610 Express Chipset

Memory

1. 13th Generation Intel ® Core™ i9/i7 processors:
   Support for DDR5 5600/5200/4800/4400 MT/s memory modules
2. 13th Generation Intel ® Core™ i5/i3 and 12th Generation Intel ® Core™, Pentium ® Gold and Celeron ® Processors:
3. Support for DDR5 4800/4400 MT/s memory modules
4. 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel ® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports

(Graphics specifications may vary depending on CPU support.)

Audio

1. Realtek ® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

1. Realtek ® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors

USB

Chipset:

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x RGB LED strip header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 2 x USB 2.0/1.1 headers
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x USB 3.2 Gen 1 ports
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks

I/O Controller

1. iTE ® I/O Controller Chip

H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   Smart Backup
   System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install

Bundled Software

1. Norton ® Internet Security (OEM version)
2. LAN bandwidth management software

Operating System

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Form Factor

1. Micro ATX Form Factor; 23.0cm x 21.5cm
