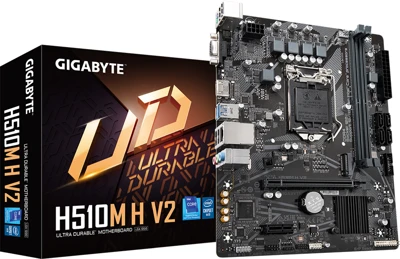

Gigabyte H510M H V2
H510m h v2

A termék rendelhető, beérkezési ideje ~7 munkanap!

Intel ® Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5

• Supports 11th/10th Gen Intel ® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 8-Channel HD Audio with High Quality Audio Capacitors
• NVMe PCIe Gen3 x4 2280 M.2 Connector
• GbE LAN with Bandwidth Management
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

• PU

  LGA1200 package:

  1. 11th Generation Intel ® Core™ i9 processors / Intel ® Core™ i7 processors / Intel ® Core™ i5 processors
  2. 10th Generation Intel ® Core™ i9 processors / Intel ® Core™ i7 processors / Intel ® Core™ i5 processors / Intel ® Core™ i3 processors/ Intel ® Pentium ® processors / Intel ® Celeron ® processors
  3. L3 cache varies with CPU

  (Please refer to "CPU Support List" for more information.)

• Chipset

  1. Intel ® H470 Express Chipset

• Memory

  1. 11th Generation Intel ® Core™ i9/i7/i5 processors:
     Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 10th Generation Intel ® Core™ i9/i7 processors:
     Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel ® Core™ i5/i3/Pentium ® /Celeron ® processors:
     Support for DDR4 2666/2400/2133 MHz memory modules
  4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel ® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.
  2. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
     * The D-Sub port is only available with the 10th Generation processors.

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek ® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  1. Realtek ® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

• USB

  Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x RGB LED strip header
  6. 1 x M.2 Socket 3 connector
  7. 4 x SATA 6Gb/s connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 1 x USB 2.0/1.1 header
  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  13. 1 x serial port header
  14. 1 x Clear CMOS jumper

• Back Panel Connectors

  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x HDMI port
  4. 2 x USB 3.2 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks

• I/O Controller

  1. iTE ® I/O Controller Chip

• H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed contro
     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     Ambient LED
     EasyTune
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install

• Bundled Software

  1. Norton ® Internet Security (OEM version)
  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 22.6cm x 18.5cm
