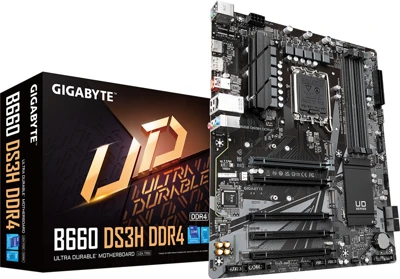

Gigabyte B660 DS3H DDR4
B660 s1700 4xddr4 4xsata3 2xm.2 5xpci-e gbit lan atx

Intel ®  B660 Motherboard with 8+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, Gaming LAN, Rear USB 3.2 Gen 2x2 Type-C ® , RGB FUSION 2.0, Q-Flash Plus​​​

• Supports 12th Gen Intel ®  Core™ Series Processors​​
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• 8+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
• GIGABYTE Gaming LAN with Bandwidth Management​
• Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2​​
• Rear SuperSpeed USB 3.2 Gen 2x2 TYPE-C ®  delivers up to 20Gb/s transfer speeds​​
• High Quality Audio Capacitors and Audio Noise Guard​
• RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

• CPU

  1. LGA1700 socket: Support for 12th Generation Intel ®  Core™, Pentium ®  Gold and Celeron ®  Processors*
  2. L3 cache varies with CPU

  * Please refer to "CPU Support List" for more information.

• Chipset

  1. Intel ®  B660 Express Chipset

• Memory

  1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel ®  HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek ®  Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

• LAN

  1. Realtek ®  GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
     (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
  2. 4 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
     (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors

  Support for RAID 0, RAID 1, RAID 5, and RAID 10

  Intel ®  Optane™ Memory Ready
  * System acceleration with Intel ®  Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.

• USB

  Chipset:

  1. 1 x USB Type-C ®  port on the back panel, with USB 3.2 Gen 2x2 support
  2. 1 x USB Type-C ®  port with USB 3.2 Gen 1 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  5. 4 x USB 2.0/1.1 ports on the back panel

  Chipset+2 USB 2.0 Hubs:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 2 x M.2 Socket 3 connectors
  10. 4 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C ®  header, with USB 3.2 Gen 1 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 2 x Thunderbolt™ add-in card connectors
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 1 x serial port header
  19. 1 x Q-Flash Plus button
  20. 1 x reset button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper

  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

• Back Panel Connectors

  1. 1 x PS/2 keyboard/mouse port
  2. 1 x USB Type-C ®  port, with USB 3.2 Gen 2x2 support
  3. 1 x USB 3.2 Gen 2 Type-A port (red)
  4. 4 x USB 2.0/1.1 ports
  5. 1 x HDMI port
  6. 1 x DisplayPort
  7. 1 x RJ-45 port
  8. 3 x audio jacks

• I/O Controller

  1. iTE ®  I/O Controller Chip

• H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install

• Bundled Software

  1. Norton ®  Internet Security (OEM version)
  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

• Form Factor

  1. ATX Form Factor; 30.5cm x 24.4cm
