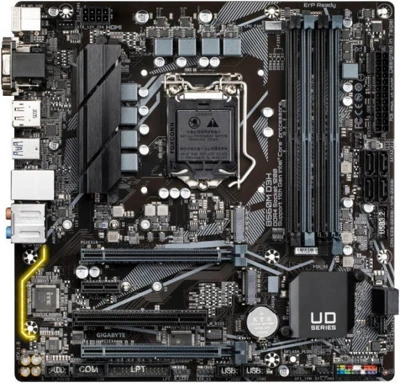

Gigabyte B560M DS3H V2
Alaplap

Intel ® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C ® , RGB FUSION 2.0, Q-Flash Plus

• Supports 11th and 10th Gen Intel ® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
• Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• USB 3.2 Gen1 Type-C ® for Fast and Versatile Connections
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

• CPU

  LGA1200 package:

  1. 11th Generation Intel ® Core™ i9 processors / Intel ® Core™ i7 processors / Intel ® Core™ i5 processors
  2. 10th Generation Intel ® Core™ i9 processors / Intel ® Core™ i7 processors / Intel ® Core™ i5 processors / Intel ® Core™ i3 processors/ Intel ® Pentium ® processors / Intel ® Celeron ® processors*
     * Limited to processors with 4 MB Intel ® Smart Cache, Intel ® Celeron ® G5xx5 family.
  3. L3 cache varies with CPU

  (Please refer to "CPU Support List" for more information.)

• Chipset

  1. Intel ® B560 Express Chipset

• Memory

  1. 11th Generation Intel ® Core™ i9/i7/i5 processors:
     Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
  2. 10th Generation Intel ® Core™ i9/i7 processors:
     Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel ® Core™ i5/i3/Pentium ® /Celeron ® processors:
     Support for DDR4 2666/2400/2133 MHz memory modules
  4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules

  (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

• Onboard Graphics

  Integrated Graphics Processor-Intel ® HD Graphics support:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version and HDCP 2.3
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)

  Support for up to 3 displays at the same time

• Audio

  1. Realtek ® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.

• LAN

  1. Realtek ® GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16
     (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
  2. 2 x PCI Express x1 slots
     (The PCIEX1 slot conforms to PCI Express 3.0 standard.)

  (Note) Supported by 11th Generation processors only.

• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
  2. 6 x SATA 6Gb/s connectors
     * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

  Intel ® Optane™ Memory Ready
  * System acceleration with Intel ® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel ® processor installed.

  (Note) Supported by 11th Generation processors only.

• USB

  Chipset:

  1. 1 x USB Type-C ® port on the back panel, with USB 3.2 Gen 1 support
  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  Chipset+USB 2.0 Hub:

  1. 2 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 6 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  14. 1 x serial port header
  15. 1 x parallel port header
  16. 1 x Clear CMOS jumper
  17. 1 x Q-Flash Plus button

  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

• Back Panel Connectors

  1. 2 x USB 2.0/1.1 ports
  2. 1 x PS/2 keyboard/mouse port
  3. 1 x DVI-D port
  4. 1 x DisplayPort
  5. 1 x HDMI port
  6. 3 x USB 3.2 Gen 1 ports
  7. 1 x USB Type-C ® port, with USB 3.2 Gen 1 support
  8. 1 x RJ-45 port
  9. 3 x audio jacks

• I/O Controller

  1. iTE ® I/O Controller Chip

• H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
     * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install

• Bundled Software

  1. Norton ® Internet Security (OEM version)
  2. Realtek ® 8118 Gaming LAN Bandwidth Control Utility

• Operating System

  1. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 24.4cm x 24.4cm
