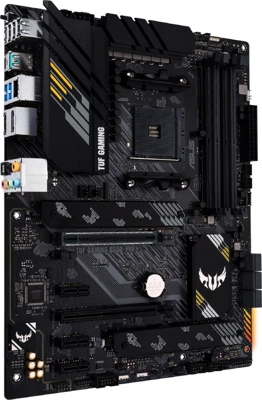

Asus TUF GAMING B550-PRO
Asus B550 sAM4 TUF GAMING B550-PRO 4xDDR4 6xSATA3 2xM.2 5xPCI-E 2.5Gbit LAN ATX

AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 14 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, Front USB Type-C®, USB 3.2 Gen 2 Type-A and Type-C®, and Aura Sync RGB lighting support

• AMD AM4 socket:  Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series desktop processors
• Enhanced power solution:  12+2 DrMOS power stages, 8+4 pin ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling:  VRM heatsink, PCH fanless heatsink,dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
• Next-gen connectivity:  PCIe 4.0 M.2,Front USB Type-C®, USB 3.2 Gen 2 Type-A and Type-C® support
• Made for online gaming:  2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology
• Realtek S1200A codec:  Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
• Two-Way AI Noise Cancelation:  Provides crystal-clear in-game voice communication

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors *
* Refer to  www.asus.com  for CPU support list

Chipset

AMD B550

Memory

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
AMD Ryzen TM  4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to  www.asus.com  for the Memory QVL (Qualified Vendors Lists).

Graphic

1  x DisplayPort 1.2
1  x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD Ryzen TM  4000 G-Series Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
* Support PCIe bifurcation for RAID on CPU function.

Storage

Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD Ryzen TM  4000 G-Series Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support* 2
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

LAN

Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard

Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Optical S/PDIF out port(s) at back panel
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Unique de-pop circuit

USB Ports

Rear USB Port  ( Total 8  )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C ® )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Front USB Port  ( Total 7  )
3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)
4 x USB 2.0 port(s)(4 x Type-A)

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

ASUS Special Features

ASUS TUF PROTECTION
- ASUS DIGI+ VRM (Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header

Back I/O Ports

1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C ® )
2 x USB 3.2 Gen 1 (blue) Type-A
4 x USB 2.0 (one port can be switched to USB BIOS FlashBack ™ )
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack ™  Button(s)

Internal I/O Ports

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

Accessories

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor
12  inch x 9.6  inch ( 30.5  cm x 24.4  cm )
