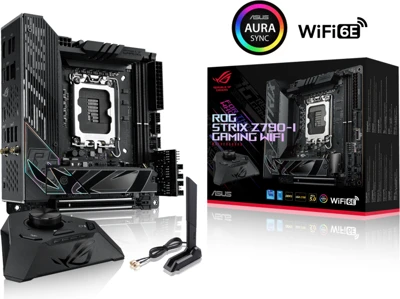

Asus ROG STRIX Z790-I GAMING WIFI
Al s1700

ROG STRIX Z790-I GAMING WIFI

Intel ® Socket LGA1700 for 13th Gen Intel ®
Core™ Processors & 12th Gen Intel ® Core™, Pentium ® Gold and Celeron ®
Processors
Supports Intel ® Turbo Boost Technology 2.0
and Intel ® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support
list.
** Intel ® Turbo Boost Max Technology 3.0
support depends on the CPU types.

Intel ® Z790 Chipset

2 x DIMM, Max. 64GB, DDR5
7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel ® Extreme Memory Profile
(XMP)
OptiMem II
* We recommend active airflow to ensure beter memory performance
* Supported memory types, data rate(Speed),
and number of DRAM modules vary depending on the CPU and memory configuration,
for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

1 x HDMI ® port***
2 x Intel ® Thunderbolt™ 4 ports (USB
Type-C ® ) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
*** Supports 4K@60Hz as specified in HDMI
2.1.
**** VGA resolution support depends on
processors' or graphic cards' resolution.

Intel ® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
* Please check the PCIe bifurcation table on the support site (
