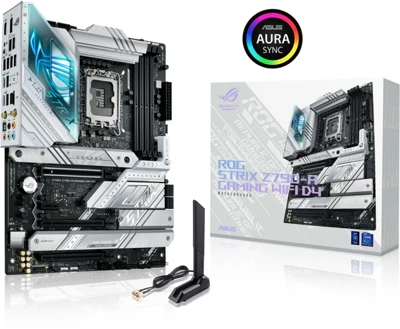

Asus ROG STRIX Z790-A GAMING WIFI D4
S1700 rog strix z790-a gamingwifi d4

CPU

Intel ® Socket LGA1700 for 13th Gen Intel ® ? Core™ Processors & 12th Gen Intel ® Core™, Pentium ® Gold and Celeron ® ? Processors*
Supports Intel ® Turbo Boost Technology 2.0? and Intel ® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel ® Z790 Chipset

Memory

4 x DIMM, Max. 128GB, DDR4 DDR4
5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel ® Extreme Memory Profile? (XMP)
OptiMem III
* Supported memory types, data rate(Speed),
and number of DRAM modules vary depending on the CPU and memory configuration,? for more information refer to www.asus.com for memory support list.

Graphics

1 x DisplayPort**
1 x HDMI ® port***
* Graphics specifications may vary between? CPU types. Please refer to ww.intel.com for any updates.?
** Supports max. 8K@60Hz as specified in? DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on? processors' or graphic cards' resolution.

Expansion Slots

Intel ® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot

Intel ® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4/x4 mode)
1 x PCIe 3.0 x1 slot

- To ensure compatibility of the device installed, please refer to
