| Chip gyártó | Intel |
| Processzor foglalat | Socket 1700 |
| Chipset | B760 |
| Memória foglalat | 4 x DDR5 |
| Max. Memória sebesség | 7800 MHz |
| Max Memória | 128 GB |
| Alaplap méret | ATX |
| PCI-E | 2 |
| PCI-E 1x | 2 |
| HDMI | 1 |
| Display Port | 1 |
| AUDIO | 7.1 |
| LAN | 2,5 Gigabit |
| RAID | Nem |
| SATA 3 | 4 |
| M.2 | 3 |
| SPDIF | 1 |
| Wi-fi | Igen |

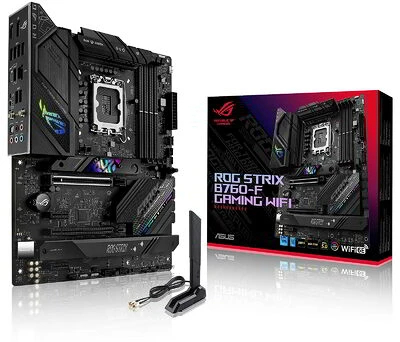

ROG STRIX B760-F GAMING WIFI
CPU
Intel ® Socket LGA1700 for 13th Gen Intel ® Core™ Processors & 12th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors
Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel ® B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel ® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI ® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel ® 13th & 12th Gen Processors*
1 x PCIe 5.0x16 slot (supports x16 mode)**
Intel ® B760 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)***
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (
