| Főbb tulajdonságok | |
| Audio | 7.1 HD |
| Chipset gyártó | Intel |
| Foglalat típusa | S1200 |
| Form Factor | ATX |
| Kivitel | Dobozos |
| Raid | Igen |
| Foglalatok | |
| Grafikus foglalat | 3 x PCI-Ex16 |
| PCI foglalatok száma | 0 db |
| PCI-E foglalatok száma | 1 db |
| Hálózat | |
| LAN1 | 100/1000/2500 Mb/s |
| LAN2 | 100/1000/2500 Mb/s |
| Memória | |
| Max memória | 128 GB |
| Memória foglalatok száma | 4 db |
| Memória órajel | 3200 MHz |
| Memória típus | DDR4 |
| Csatlakozók | |
| SATA III | 6 db |
| USB 2.0 | 4 db |
| USB 3.0 | 0 db |
| USB 3.1 | 10 db |
| PS/2 Port | 0 db |
| HDMI | Igen |
| Thunderbolt | Igen |
| M.2 foglalat | Igen |

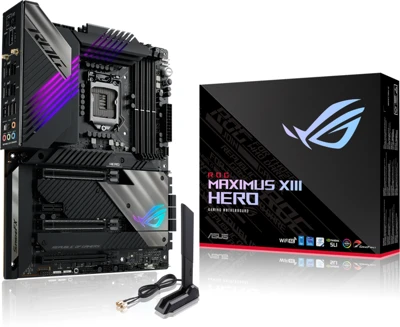

ROG MAXIMUS XIII HERO
Intel ® Z590 ATX gaming motherboard with 14+2 power stages, PCIe ® 4.0, Onboard WiFi 6E (802.11ax), Dual Intel ® 2.5 Gb Ethernet, Quad M.2 with heatsinks and embedded backplates, Dual onboard Thunderbolt 4, USB 3.2 Gen 2x2 front-panel connector and Aura Sync RGB lighting
- Intel ® Socket LGA 1200 for 11th Gen Intel ® Core™ processors and 10th Gen Intel Core, Pentium ® Gold and Celeron ® Processors
- Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation
- Robust Power Solution: 14+2 teamed power stages rated for 90 Amps, ProCool II power connectors, MicroFine alloy chokes and 10K Japanese-made black metallic capacitors
- Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, quad M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone
- High-performance Networking: Onboard WiFi 6E (802.11ax), dual Intel ® 2.5 Gb Ethernet and ASUS LANGaurd.
- Fastest Gaming Connectivity: PCIe ® 4.0, quad M.2, USB 3.2 Gen 2x2 front-panel connector, dual USB Type-C ® ports with Thunderbolt™ 4 USB-C ®
- Industry-leading Gaming Audio: ROG SupremeFX ALC4082 with ESS ® ES9018Q2C DAC for high-fidelity audio
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY-friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder
- Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
ROG MAXIMUS XIII HERO
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset
Intel® Z590 Chipset
Memory
Memory Channels:4DDR4 (Dual channel)
Max Memory Size:128GB
Graphics
2 x HDMI 2.0 2 x Intel® Thunderbolt™ 4 ports
Storage
Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports
Ethernet
2 x Intel® I225-V 2.5Gb Ethernet ASUS LANGuard
ASUS LANGuard
USB
Rear USB:Total 10 ports
Front USB:Total 9 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082, - Impedance sense for front and rear headphone outputs, - Supports: Jack-detection/ Multi-streaming/ Front Panel Jack-retasking, - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input, - Supports up to 32-Bit/384 kHz playback
Intrernal I/O Connectors
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
Operating System
Windows 10 64-bit
Form Factor
ATX
30.5cm x 24.4cm
