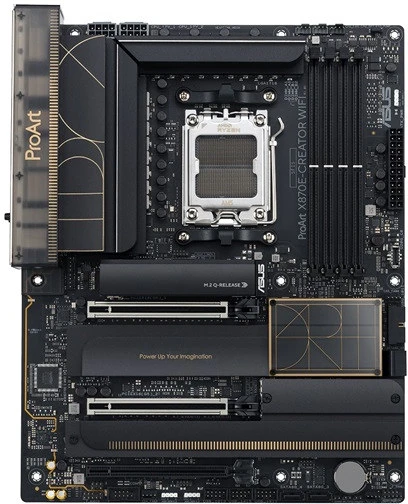

Asus PROART X870E-CREATOR WIFI
Sam5

Model

ProArt X870E-CREATOR WIFI

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset

AMD X870E

Memory

4 x DIMM slots, max. 192GB, DDR5

Supports up to

8000+MT/s(OC) with Ryzen™ 9000 Series Processors,

8000+MT/s(OC) with Ryzen™ 8000 Series Processors,

8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x HDMI TM port**

2 x USB4 ® (40Gbps) ports support USB Type-C ® display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C ® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
AMD X870E Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table on the support site (
