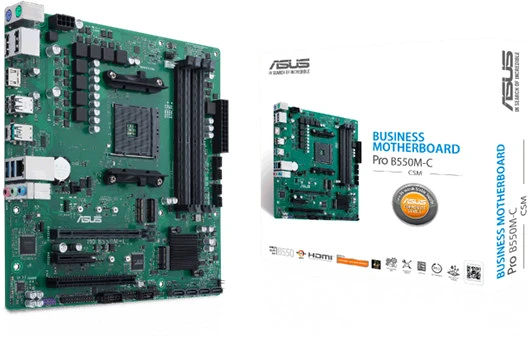

Asus PRO B550M-C/CSM
Asus alaplap am4 amd b550, matx

ASUS Alaplap AM4 PRO B550M-C/CSM AMD B550, mATX Model Pro B550M-C/CSM CPU AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *,* Refer to? www.asus.com? for CPU support list Chipset AMD B550 Memory 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU. Graphic 1 x HDMI 2.1(4K@60HZ),*Graphics specifications may vary between CPU types. Expansion Slots AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors,1 x PCIe 4.0 x16 (x16 mode) *,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors,* Support PCIe bifurcation for RAID on CPU function.,AMD B550 Chipset,1 x PCIe 3.0 x4 *1,1 x PCIe 3.0 x16 (x16 mode),1 x PCI Storage AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors :? ,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :? ,Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,AMD B550 Chipset :? ,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10 LAN Realtek RTL8111H 1Gb Ethernet Audio Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,* Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports Rear USB Port? ( Total 6 ),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),Front USB Port? ( Total 7 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 2.0 port(s)(2 x Type-A),2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®),3 x USB 2.0 port(s) Software Features ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) ASUS Special Features ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM2.0 IC Onboard Back I/O Ports 1 x Realtek® RTL8111H,2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®),2 x USB 3.2 Gen 1 Type-A,2 x DisplayPort,1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),1 x HDMI,2 x USB 2.0,3 x Audio jack(s) Internal I/O Ports 1 x COM port header,2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s),1 x SMBus header(s),2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s),2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode),1 x Thunderbolt header(s),1 x Chassis intrusion header,1 x CPU Fan connector(s),2 x Chassis Fan connector(s),1 x M.2 with E key for Wi-Fi module,1 x LPT header,4 x SATA 6Gb/s connector(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x COM port header,1 x LPC Debug header,1 x Speaker connector Accessories 3 x M.2 SSD screw package(s),2 x M.2 SSD Hex screw packages,1 x ACC Express Activation Key Card,2 x SATA 6Gb/s cable(s),User manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PXE Operating System Windows® 10 64-bit Form Factor mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) Note *1 The PCIe x4 slot runs x2 mode when the PCI slot is occupied.
