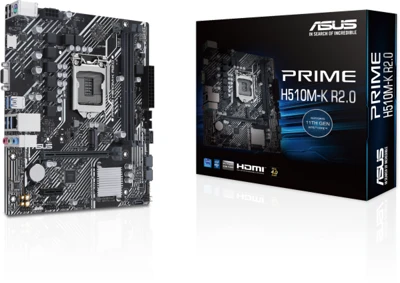

Asus PRIME H510M-K R2.0
S1200

Intel ® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Intel ® Optane Memory Ready, FAN Xpert, Armoury Crate, 5X PROTECTION III

• Intel ® LGA 1200 socket: Ready for 11 th and 10 th Gen Intel ® Processors
• Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, 1 Gb Ethernet and USB 3.2 Gen 1
• Comprehensive cooling: PCH heatsink and Fan Xpert
• 5X Protection III: Multiple hardware safeguards for all-round protection

Model

PRIME H510M-K R2.0

CPU

Intel ® Socket LGA1200 for 11 th Gen Intel ® Core ™ Processors & 10 th Gen Intel ® Core ™ , Pentium ® Gold and Celeron ® Processors*
Supports Intel ® 14 nm CPU
Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel ® H470 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel ® Extreme Memory Profile (XMP)
* 10 th Gen Intel ® Core ™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* 11 th Gen Intel ® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
