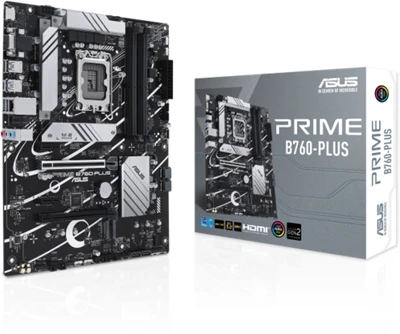

Asus PRIMEB760-PLUSD4
Prime b760-plus d4

ASUS Prime B760-PLUS D4, an Intel ® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI ® , SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C ® , front USB 3.2 Gen 1 Type-C ® , Thunderbolt™ (USB4 ® ) support, Aura Sync

• Intel ® LGA 1700 Socket: Ready for 13 th and 12 th Gen Intel ® processors
• Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C ® , front USB 3.2 Gen 1 Type-C ® and Thunderbolt™ (USB4 ® ) header support
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Model

PRIME B760-PLUS D4

CPU

Intel ® Socket LGA1700 for 13 th Gen Intel ® Core™ & 12 th Gen Intel ® Core™, Pentium ® Gold and Celeron ®
Processors*
Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel ® B760 Chipset

Memory

4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel ® Extreme Memory Profile (XMP)
OptiMem
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit
