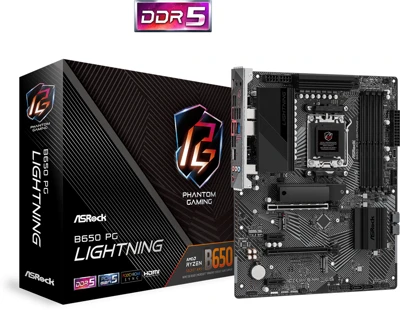

Asrock B650 PG LIGHTNING
Al sam5

• Egyéni tuljadonságok

  Kimagasló termelékenység
  - PCIe Gen5 (M.2)
  - Dual Channel DDR5
  Sziklaszilárd tartósság
  - 14+2+1 Power Phase, 60A SPS
  - Pre-Installed I/O Shield
  Ultragyors kapcsolatok
  - 2.5G LAN
  - ASRock Lightning Gaming Ports
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer
  EZ Troubleshooter
  - ASRock Post Status Checker

• Processzor

  - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

• Chipset

  - AMD B650

• Memória

  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*
  - Max. capacity of system memory: 128GB*
  - Supports Extreme Memory Profile (XMP) and EXTended profilok órajelnöveléshez (EXPO) memory modules

• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support

• Videokártyák

  Integrated AMD RDNA™ 2 graphics (A tényleges támogatás CPU-nként változhat)
  - 1 x HDMI 2.1 TMDS/FRL 8G kompatibilis, supports HDR, HDCP 2.3 and max. felbontás up to 4K 120Hz

• Audio

  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio

• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Phantom Gaming LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control

Slotok

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*
- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*NVMe SSD-k támogatása rendszerindító lemezként

Tárolás

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

*NVMe SSD-k támogatása rendszerindító lemezként
Supports ASRock U.2 Kit

RAID

- Supports RAID 0, RAID 1 and RAID 10 for SATA tárolóeszközök
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe tárolóeszközök

*Requires additional M.2 NVMe expansion cards to support RAID 10

USB

- 1 x USB 3.2 Gen2x2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-C (Front)
- 9 x USB 3.2 Gen1 (7 Rear, 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

*All USB ports support ESD Protection

Csatlakozó

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)

*Összesen akár 12 V/3 A, 36 W teljesítményű LED csík támogatása

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Hátsó panel I/O

- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)
- 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

Szoftver és UEFI

Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Kiegészítők

- 1 x Használati útmutató
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB

Operációs rendszer

- Microsoft ® Windows ® 10 64-bit / 11 64-bit

Tanusítványok

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
