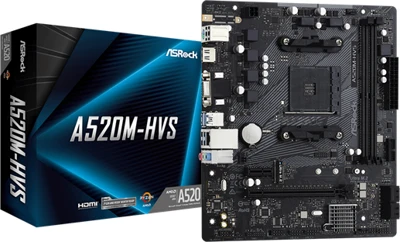

Asrock A520M-HVS
Al sam4

A520M-HVS

• Supports 3 rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
• 6 Phase Power Design
• Supports DDR4 4733+ (OC)
• 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
• Graphics Output Options: D-Sub, HDMI
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
• 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
  6 x USB 2.0(2 x Rear, 4 x Front)
• Realtek Gigabit LAN

• Unique Feature

  ASRock Super Alloy
  - Premium 50A Power Choke
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop

• CPU

  - Supports 3 rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors (3000 and 4000 Series Processors)*
  - 6 Power Phase design



  *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.

• Chipset

  - AMD A520

• Memory

  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  - Max. capacity of system memory: 64GB**
  - Supports Extreme Memory Profile (XMP) memory modules
  - 15μ Gold Contact in DIMM Slots



  *Please refer to below table for AMD non-XMP memory frequency support. For more details, please refer to the QVL on ASRock's website.Ryzen Series CPUs (Matisse):


  Ryzen Series CPUs:


  SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
  DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows ® 32-bit OS. For Windows ® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS

  - 128Mb AMI UEFI Legal BIOS with GUI support
  - Supports "Plug and Play"
  - ACPI 5.1 compliance wake up events
  - Supports jumperfree
  - SMBIOS 2.3 support
  - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

• Graphics

  - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
  - DirectX 12, Pixel Shader 5.0
  - Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  - Dual graphics output: support D-Sub and HDMI ports by independent display controllers
  - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
  - Supports HDR (High Dynamic Range) with HDMI 2.1
  - Supports HDCP 2.3 with HDMI 2.1 Port
  - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
  - Supports Microsoft ® PlayReady



  *Actual support may vary by CPU

  **The Max shared memory 16GB requires 32GB system memory installed.

• Audio

  - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  - Supports Surge Protection

• LAN

  - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111H
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE

• Slots

  - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
  - 1 x PCI Express 3.0 x1 Slot



  *Supports NVMe SSD as boot disks

• Storage

  - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*



  *Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit

• Connector

  - 1 x SPI TPM Header
  - 1 x COM Port Header
  - 1 x Chassis Intrusion and Speaker Header
  - 1 x CPU Fan Connector (4-pin)*
  - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
  - 1 x 24 pin ATX Power Connector
  - 1 x 4 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)



  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  **The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
  CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

• Rear Panel I/O

  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x D-Sub Port
  - 1 x HDMI Port
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

  Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock XFast LAN
  UEFI
  - ASRock Full HD UEFI
  - ASRock Instant Flash



  *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Support CD

  - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

• Accessories

  - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
  - 1 x Screw for M.2 Socket

• Hardware Monitor

  - Temperature Sensing: CPU, Chassis Fans
  - Fan Tachometer: CPU, Chassis Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
  - Fan Multi-Speed Control: CPU, Chassis Fans
  - CASE OPEN detection
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

• Form Factor

  - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
  - Solid Capacitor design

• OS

  - Microsoft ® Windows ® 10 64-bit

• Certifications

  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
