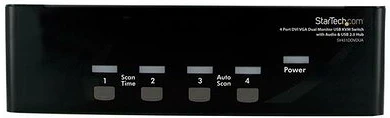

Startech SV431DDVDUA
Kvm switch - 4 port

USB2.0 bemenet: 4db, USB2.0 kimenet: 4dbUSB2.0 bemenet: 4db, USB2.0 kimenet: 4db

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.

The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

• High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
• Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
• Absolutely no software or drivers required providing a completely OS independent KVM solution

Audio	Yes
Cables Included	No
Daisy-Chain	No
KVM Ports	4
Multi-Monitor	Yes
PC Interface	USB
PC Video Type	DVI+VGA
Rack-Mountable	Optional
Performance
DVI Support	Yes - Single Link
Hot-Key Selection	Yes
IP Control	No
Maximum Analog Resolutions	1920 x 1400
Maximum Digital Resolutions	1920 x 1200
Maximum Number of Users	1
Port Selection Support	Push Button and Hotkeys
Connector(s)
Console Interface(s)	1 - DVI-I (29 pin) Female
	1 - VGA (15 pin; High Density D-Sub) Female
	2 - 3.5 mm Mini-Jack (3 Position) Female
	4 - USB A (4 pin) Female
Host Connectors	4 - 3.5 mm Mini-Jack (3 Position) Female
	4 - DVI-I (29 pin) Female
