| Part No |
90NR0EB5-M007T0 |
| Model Name |
FA507NU-LP031W |
| TTV |
2023-08-11 |
| End of Production |
2024-12-31 |
| EAN Code |
4711387249062 |
| UPC Code |
197105249066 |
| WEEE |
2.582 |
| BASE UNIT |
VSNR0EB5-BU0200 |
| ? |
? |
| Marketing Name |

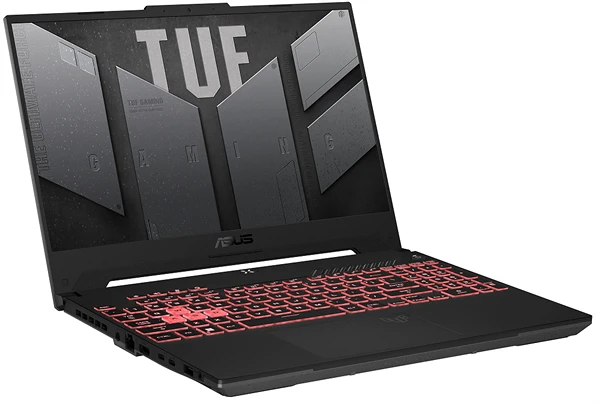

ASUS TUF Gaming A15 |
| Color |
Mecha Gray |
| Dimension (W x D x H) |
35.4 x 25.1 x 2.24 ~ 2.49 cm (13.94" x 9.88" x 0.88" ~ 0.98") |
| Weight |
2.20 Kg ( lbs) |
| Processor |
AMD Ryzen™ 7 7735HS Mobile Processor (8-core/16-thread, 16MB L3 cache, up to 4.7 GHz max boost) |
| Chipset |
N/A |
| Discrete/Optimus |
MUX Switch + NVIDIA® Advanced Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 4050 Laptop GPU |
| Graphic Wattage |
2420MHz* at 140W (2370MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost) |
| Graphic Memory |
6GB GDDR6 |
| IGPU |
AMD Radeon™ Navi2 Graphics |
| Panel Size |
15.6-inch |
| Resolution |
FHD (1920 x 1080) 16:9 |
| Refresh Rate |
144Hz |
| Viewing Angle |
170 |
| Panel Tech |
Value IPS-level |
| Brightness |
250nits |
| Contrast |
1000:1 |
| NTSC % |
72% |
| SRGB % |
100% |
| Adobe % |
75.35% |
| Anti glare |
Anti-glare display |
| Adaptive-Sync technology |
G-Sync |
| Pantone |
N/A |
| Support Dolby Vision HDR |
N/A |
| On board memory |
N/A |
| DIMM Memory |
8GB DDR5-4800 SO-DIMM *2 |
| Total System Memory |
DDR5 16GB |
| Memory Slot |
2x SO-DIMM slots |
| Memory Max. |
32GB |
| Multi-channel memory technology |
Support dual channel memory |
| System Storage Installed |
512GB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
M.2 512GB PCIe SSD
M.2 1TB PCIe SSD
M.2 2TB PCIe SSD |
| Expansion Slot (includes used) |
2x DDR5 SO-DIMM slots |
| LAN |
10/100/1000 Mbps |
| Wi-Fi/Bluetooth |
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 Wireless Card (*Bluetooth® version may change with OS upgrades.) |
| I/O Ports |
1x RJ45 LAN port
1x Type C USB 4 support DisplayPort™
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC
2x USB 3.2 Gen 1 Type-A |
| Display output |
1x HDMI 2.1 FRL |
| Audio |
1x 3.5mm Combo Audio Jack |
| Webcam |
720P HD camera |
| Mic |
Built-in array microphone |
| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB |
| NumberPad |
N/A |
| Aura Sync |
N/A |
| Speakers |
2-speaker system |
| Audio Tech |
AI noise-canceling technology
Dolby Atmos
Hi-Res certification
Support Microsoft Cortana near field/Far field |
| Operating System |
Windows 11 Home |
| Antivirus |
McAfee® 30 days free trial |
| Xbox Game Pass |
Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Security |
BIOS Administrator Password and User Password Protection
Kensington Security Slot™
Trusted Platform Module (Firmware TPM) |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Fast charging |
Recharge from 0-50% in 30 minutes |
| Power |
o6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
| Ecolabels & Compliances |
ENERGY STAR® |
| Reparability Index (for FR) |
8.2 |
