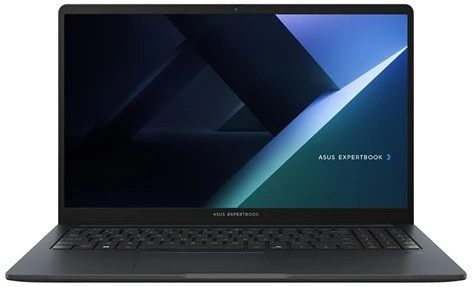

ExpertBook Sales Model Name
B1503CVA-S76265 EAN Code
? UPC Code
? WEEE
1.465 BASE UNIT
VSNX0801-BUB121 Operating System
Non-preinstalled OS Office
? LCD cover-material
Plastic LCD cover-color
Gentle Grey Top case-material
Plastic Top case-color
Gentle Grey Bottom case-material
Plastic Bottom case-color
Gentle Grey Military grade
US MIL-STD 810H military-grade standard Panel Size
15.6-inch Backlit
LED Backlit OLED
? Brightness
300nits Resolution
FHD (1920 x 1080) 16:9 Glare
Anti-glare display Color gamut
NTSC: 45% View angle(H/V)
170/170 Response time(Typ/Max) (ms)
20/25 Refresh rate
60Hz Contrast? (Typ)
800:1 Touch Panel
Non-touch screen Screen-to-body ratio
87 % Pantone
? IPS-level
Wide view VESA CERTIFIED Display HDR
? Processor
Intel® Core™ 5 Processor 120U 1.4 GHz (12MB Cache, up to 5.0 GHz, 10 Cores, 12 Threads) Neural processor
? Chipset
N/A Discrete/Share
Share Integrated GPU
Intel® UHD Graphics VRAM
N/A How to upgrade memory
Upgradable? Need to remove bottom/top case Expansion Slot(includes used)
2x DDR5 SO-DIMM slots1x M.2 2230 PCIe 4.0x41x M.2 2280 PCIe 4.0x4 On board memory
? DIMM Memory
8GB DDR5 SO-DIMM Total System Memory
DDR5 8GB Storage
512GB M.2 2280 NVMe™ PCIe® 4.0 SSDSSD Housing for storage expansion Front-facing camera
720p HD cameraWith privacy shutter Wireless
Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card On board Wireless
? NumberPad
N/A FingerPrint
FingerPrint Keyboard type
Backlit Chiclet Keyboard with Num-key I/O ports
2x USB 3.2 Gen 1 Type-A2x USB 3.2 Gen 2 Type-C support display / power delivery1x HDMI 1.4, up to 3840x2160p/30Hz1x 3.5mm Combo Audio Jack1x RJ45 Gigabit Ethernet Audio
Audio by DiracBuilt-in speakerBuilt-in array microphone Battery
50WHrs, 3S1P, 3-cell Li-ion AC Adapter
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal Required charging power? Min: 55WMax: 65W*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. Dimension (WxHxD)
35.95 x 23.22 x 1.99 ~ 1.99 cm (14.15" x 9.14" x 0.78" ~ 0.78") Weight (with Battery)
1.65 kg (3.64 lbs) Weight (w/o Battery)
1.46 kg (3.22 lbs) Security
Fingerprint sensor intergrated with TouchpadKensington Nano Security Slot™(6x 2.5mm)BIOS Booting User Password ProtectionBIOS Integrity Measurement SupportBIOS Protection SupportBIOS Self RecoveryBIOS setup user passwordCSME BIOS Redundancy AssistanceEnhanced Password StrengthHDD User Password Protection and SecurityIntel CSME Firmware ResilienceIntel® BIOS GuardIntel® Boot GuardMicrosoft Secured-core PCMicrosoft Security Level 2Support Absolute Persistence 2.0 (Computrace)Trusted Platform Module (TPM) 2.0N/A Antivirus
? MyASUS feature
System diagnosisBattery health chargingFan ProfileSplendidTru2LifeFunction key lockWiFi SmartConnectAppDealsLink to MyASUS Built-in Apps
MyASUSAI ExpertMeet (AI features need devices with 12GB RAM or more) Disclaimer for Built-in Apps
Built-in Apps vary from OS SKU.*MyASUS/McAfee don't support in Pure OS/without OS/G sku/Win SE/Windows on ARM/Linux OS (ex. Endless, Kylin, Ubuntu) Included in the Box
? Reparability Index (for France)
9.6 Reparability Index (for Belgium)
9.4 Ecolabels & Compliances
EPEAT Gold with Climate+Energy star 8.0FSC RecycledREACHRoHSTCO Certified Base Warranty
3Y Pick up/ return Recommended Warranty Package Part number//Extension and/or upgrade service from base warranty
ACX13-007003NX//3Y OnSite Service(Next Business Day)*upgradeACX13-007023NX//2Y Extension? 5Y OnSite Service(Next Business Day)*upgradeACX14-017300NX//3Y HDD Retention*upgradeACX15-011800NX//3Y OnSite Service(Next Business Day)? 3Y Accidental Damage Protection*? 3Y HDD_Retention*upgrade*If you would like to know the details, please contact your sales teams. Battery warranty
Commercial NB B series Battery warranty follow system warranty, 4Y-5Y by WEP option. Sustainable Material_Top cover(A part)
30% PCR recycled plastic(cover or inner frame) Sustainable Material_Keyboard frame (C part)
30% PCR recycled plastic(cover or inner frame) Sustainable Material_Bottom cover (D part)
30% PCR recycled plastic(cover or inner frame) Sustainable Material_Battery
30% PCR recycled plastic Sustainable Material_Keyboard
? Sustainable Material_Speaker
? Sustainable Material_Total PCR recycled plastic
29%
