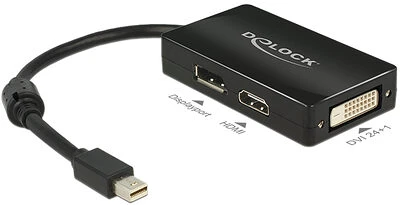

This mini Displayport adapter by Delock enables you to extend your system by one Displayport, HDMI and DVI interface. Thus you can connect different devices like e.g. TV, beamer, PC monitor etc. Only one monitor can be used on the adapter, not several at the same time.
Specification
• Connector:
1 x mini Displayport 20 pin male >
1 x Displayport 20 pin female
1 x HDMI-A 19 pin female
1 x DVI-D (Single Link) 24+1 female
• Chipset: PS8312
• Mini Displayport 1.1a specification
• High Speed HDMI specification
• DVI-D (Single Link) 24+1 port with screw nuts (VGA not wired)
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Supports a resolution up to 1920 x 1200 / 1080p @ 60 Hz (depending on the system
and the connected hardware)
• Power consumption: ca. 100 mW
• 1 x ferrite core
• Cable length ca. 16 cm without connector
• Colour: black
• OS independent, no driver installation necessary
System requirements
• A free mini Displayport DP++ female port
Package content
• Adapter mini Displayport to Displayport / HDMI / DVI
Package
• Retail Box
