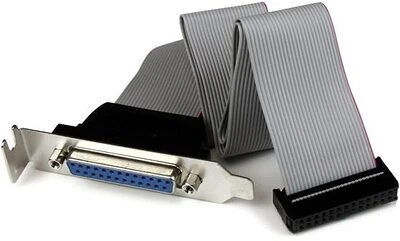

The PLATE25F16LP DB25 to IDC26 Parallel Port Bracket adds a DB25 parallel port to the rear panel of a low profile/small form factor computer, which connects to an IDC26 header connector on the motherboard.
Backed by Lifetime Warranty and constructed of only top quality components, our Parallel Port Header Cable offers a cost-effective solution for adding a Parallel device connection using a compatible motherboard.
The StarTech.com Advantage
- Cost-effective solution for adding a DB25 parallel port to a low profile/small form factor computer, which eliminates the cost of expensive peripheral upgrades
- Backed by StarTech.com Lifetime Warranty
| Hardware |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Connector(s) |
| Connector A | 1 - DB-25 (25 pin; D-Sub) Female |
| Connector B | 1 - IDC (26 pin; Motherboard Header) Female |
| Physical Characteristics |
| Cable Length | 16 in [406.4 mm] |
| Color | Gray |
| Product Height | 3.1 in [80 mm] |
| Product Length | 16 in [406.4 mm] |
| Product Weight | 0.1 lb [0 kg] |
| Product Width | 0.7 in [18 mm] |
| Wire Gauge | 28 AWG |
| Packaging Information |
| Package Quantity | 1 |
| Shipping (Package) Weight | 0.1 lb [0 kg] |
| What's in the Box |
| Included in Package | 1 - Low Profile 16in DB25 Parallel Female to IDC 26 Pin Header Slot Plate |
