Support up to 1080p with 60Hz
Supports digital full HD and a higher transmission rate by Single Link.
Copper wire, foil and braid shielding for robustness and reliable connection
Plug and play, no additional driver needed
Attention! The DVI socket supports the connection of 24+5 plugs, but only transmits single link 18+1 DVI-D signals in Full HD resolution.
Supports DisplayPort 1.1
Bandwidth: 6.75 (2.25 per channel, 225 MHz)
Color depth: 36bit (12bit per channel)
Power supply via DisplayPort

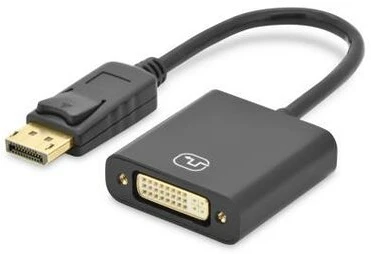

Input: DisplayPort male connector, 20 pin
Output: DVI female connector, (24+5)
Resolutions: 480i, 576i, 1080i, 480p, 576p, 720p, 1080p (50 / 60 Hz)
Operating temperature: 0°C to +45°C
Operating humidity: 10% to 80% RH (no condensation)
Storage temperature: -10°C to +80°C
Storage humidity: 5% to 90% RH (no condensation)
Power consumption: 300 mW
Cable length: 15 cm
Color: black
AWG: 28
Interlock: Snap fastener
Connector surface: nickel-plated
Color cable: black
Color connector: black
Hoods: molded
Shielding: Double shielding
Connector 1: DP, plug
Connector 2: DVI-I, (24+5), jack
DisplayPort standard: DisplayPort 1.1a
Ferrite filter: none
Assortment: DisplayPort Cables
Length: 0.15 m
Packaging: Polybag
Wire material: CU
