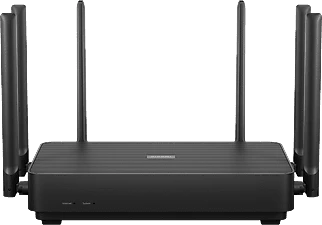

| Xiaomi Router AX3200 |
| L×W×H (per unit) | 284mm × 186mm × 186mm |
| Product color | Black |
Hardware configuration | |
| Processor | MediaTek Filogic800 Dual-core A53 1.35GHz CPU |
| Memory | 256MB |
| 2.4GHz Wi-Fi | 4×4 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 800Mbps) |
| 5GHz Wi-Fi | 4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps) |
| Antennas | External omnidirectional antennas |
| Total ports | 10/100/1000Mbps adaptive WAN port (Auto MDI/MDIX) ×1 |
| . | 10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX) ×3 |
| LED indicator light | 2 lights, incl. System indicator × 1, Internet indicator × 1 |
| System reset button | ×1 |
| Mesh networking button | ×1 |
| Power input port | ×1 |
| Protocol standards | IEEE 802.11a/b/g/n/ac/ax,IEEE 802.3/3u/3ab |
Wireless specifications | |
| Dual-band | 2.4GHz, 5GHz |
| Modulation | 11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps) |
| 11a/g:OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps) | |
| 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM. | |
| 11ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM. | |
| . | 11ax:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM. |
Software specifications | |
| Operating system | MiWiFi ROM, a smart router operating system based on OpenWRT |
| Wi-Fi Encryption | WPA-PSK/WPA2-PSK/WPA3-SAE encryption |
| Management applications | Supports Web, Android, iOS |
Working Environment | |
| Working environment Temperature | 0-40 Celsius |
| Operating humidity | 10%-90%RH (non-condensing) |
| Storage temperature | -40-70 Celsius |
| Storage humidity | 5%-90%RH (non-condensing) |
Package contents | |
| Xiaomi Router AX3200 | ×1 |
| User Manual | ×1 |
| Power cord | ×1 |
| Network cable | ×1 |
|
|
