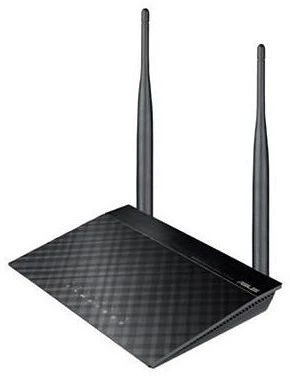

Asus RT-N12E
Asus wireless router n-es 300mbps 1xwan(100mbps) + 4xlan(100mbps),

Network Standard

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IPv4

IPv6

Product Segment

N300 complete networking : 300 Mbps

Data Rate

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

802.11n : up to 300 Mbps

Antenna

Fixed antenna x 2

Transmit/Receive

MIMO technology

2.4 GHz 2 x 2

Memory

8 MB Flash, 32 MB RAM

Operating Frequency

2.4G Hz

Ports

RJ45 for 10/100 BaseT for WAN x 1, RJ45 for 10/100 BaseT for LAN x 4

Button

WPS Button, Reset Button

LED Indicator

Power x 1

Wi-Fi x 1

WAN x 1

LAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 12 V with max. 0.5 A current

Package content

RT-N12E C1 Router x 1

Warranty Card x 1

Power Supply x 1

*Package content varies according to local requirements of each country

Product Weight (g)

168.9 g

AiMesh

AiMesh:No

Primary AiMesh router:No

AiMesh node:No

Router APP

ASUS Router APP:Yes

Game

Game Boost/acceleration:No

WTFast:No

Alexa

Support Alexa skill:No

IFTTT

Support IFTTT:No

AiProtection

AiProtection:No

Router Security Assessment:No

Malicious site blocking:No

Two-Way IPS:No

Infected Device Prevention and Blocking;No

Parental Control

Parental Control:Yes

Parental Control Customized Internet schedule:Yes

Traffic Control

Adaptive QoS:No

Bandwidth Monitor:No

Bandwidth limiter:Yes

Maximum Bandwidth limiter rule:32

Traditional QoS:Yes

Maximum Traditional QoS rule:32

Traffic Monitor:Yes

Real-time traffic monitor:Yes

Wired Traffic Monitor:Yes

Wireless Traffic Monitor:Yes

Traffic Analyzer:No

Traffic analysis period:Daily, Weekly, Monthly

Website history:No

Wireless

IPv6:Yes

MU-MIMO:No

Wi-Fi Encryption:Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise

UTF-8 SSID:Yes

Guest Network:Yes

Maximum Guest Network rule:2.4GHz x3, 5GHz x3

Guest Network Encryption:Open system, WPA/WPA2-Personal

WPS:Yes

Wi-Fi MAC address filter:Yes

Maximum MAC filters:64

Wireless scheduler:Yes

Airtime fairness:No

RADIUS Server:Yes

Universal beamforming:No

Explicit beamforming:No

WAN

Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN:No

WAN Aggregation:No

3G/4G LTE dongle:No

Android tethering:No

Port forwarding:Yes

Maximum port forwarding rule:64

Port triggering:Yes

Maximum port triggering rule:32

DMZ:Yes

DDNS:Yes

NAT Passthrough:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server:Yes

IGMP snooping:Yes

IPTV:Yes

LAN Link Aggregation:No

Manually assign IP address:Yes

VPN

VPN Client L2PT:Yes

VPN Client OVPN:Yes

VPN Client PPTP:Yes

VPN Server IPSec:No

VPN Server OVPN:Yes

VPN Server PPTP:Yes

VPN Fusion:No

USB application

File System:No

3G/4G LTE dongle:No

HDD hibernation:No

Safely Remove disk:No

AiCloud:No

Download master:No

AiDisk:No

Media Server:No

Time Machine:No

Samba Server:No

FTP Server:No

Shared Folder privileges:No

Administration

Operating mode:Accesspoint, Router

Operating system:ASUSWRT

Free OS upgrade:Yes

Firewall:Yes

Maximum Firewall keyword filter:64

Maximum Firewall network service filter:32

Maximum Firewall URL filter:64

Wake on LAN (WOL):Yes

SSH:Yes

Configuration backup and restore:Yes

Diagnosis tools:Yes

Feedback system:Yes

System log:Yes
