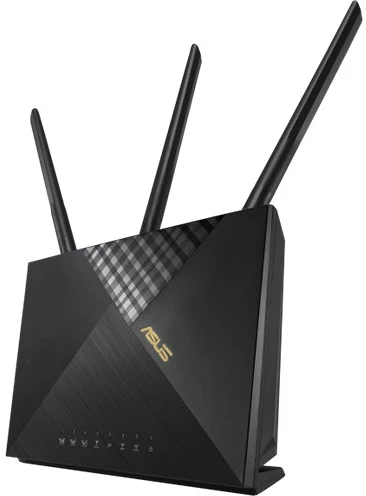

Asus 4G-AX56
Asus 4g modem + wireless router dual band ax1800 1xwan(1000mbps) + 4xlan(1000mbps),

Model Name

4G-AX56

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX1800 ultimate AX performance

Data Rate

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Connectivity Technology

LTE: Downlink 300 Mbps / Uplink 50 Mbps

HSPA+: Downlink 42 Mbps / Uplink 11 Mbps

4G FDD-LTE: 2100 /1800 /850 /2600 /900 /800 /700

4G TDD-LTE: 2300 /2600 /2500

3G UMTS: 2100 /1800 /850 /900

Antenna

WiFi: 2 x external fixed antenna

LTE: 1 x external fixed antenna, 1 x internal antenna

Memory

128 MB Flash

512 MB RAM

Operating Frequency

2.4 GHz / 5 GHz

Ports

1 x Gigabit WAN port, 4 x Gigabit LAN ports, 1 x Nano SIM tray slot

Button

Power, Reset, WPS

LED Indicator

Power x 1

WiFi x 2

WAN x 1

Mobile WAN connection x 1

Mobile WAN signal x 3

Package content

4G-AX56

Quick Start Guide

Warranty Card

RJ45 Cable

Power Adapter

Product Weight (g)

753

AiMesh

AiMesh : No

Primary AiMesh router : No

AiMesh node : No

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration : No

WTFast : No

Alexa

Support Alexa skill : Yes

IFTTT

Support IFTTT : No

AiProtection

AiProtection : AiProtection Classic

Router Security Assessment : Yes

Malicious site blocking : Yes

Two-Way IPS : No

Infected Device Prevention and Blocking : No

Parental Control

Parental Control : Yes

Parental Control Customized Internet schedule : Yes

Traffic Control

Adaptive QoS : No

Bandwidth Monitor : No

Bandwidth limiter : Yes

Traditional QoS : Yes

Traffic Monitor : No

Real-time traffic monitor : Yes

Wired Traffic Monitor : Yes

Traffic Analyzer : No

Website history : Yes

Wireless

IPv6 : Yes

MU-MIMO : Yes

UTF-8 SSID : Yes

Guest Network : Yes

Guest Network Connection time limit : Yes

WPS : Yes

Wi-Fi MAC address filter : Yes

Wireless scheduler : Yes

Airtime fairness : Yes

RADIUS Server : No

Universal beamforming : Yes

Explicit beamforming : Yes

WAN

Internet connection Type : Mobile WAN, Ethernet WAN

Dual WAN : Yes

WAN Aggregation : No

3G/4G LTE dongle : No

Android tethering : No

Port forwarding : Yes

Port triggering : No

DMZ : Yes

DDNS : Yes

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay

Let's Encrypt : Yes

LAN

DHCP Server : Yes

IGMP snooping : Yes

IPTV : Yes

LAN Link Aggregation : No

Manually assign IP address : Yes

Maximum manually assign IP address rule : 64

VPN

VPN Client L2PT : Yes

VPN Client OVPN : Yes

VPN Client PPTP : Yes

VPN Server IPSec : No

VPN Server OVPN : Yes

VPN Server PPTP : Yes

VPN Fusion : No

USB application

File System : No

HDD hibernation : No

Safely Remove disk : No

AiCloud : No

Download master : No

Media Server : No

AiDisk : No

Time Machine : No

Samba Server : No

FTP Server : No

Shared Folder privileges : No

Administration

Operating mode : Modem Router,Access Point

Operating system : Yes

Firewall : Yes

Maximum Firewall keyword filter : 64

Maximum Firewall network service filter : 32

Maximum Firewall URL filter : 64

Wake on LAN (WOL) : Yes

Configuration backup and restore : Yes

SSH : Yes

Diagnosis tools : Yes

Feedback system : Yes

System log : Yes
